Why Choose the Rittal SV 9340.210 Cover Section?

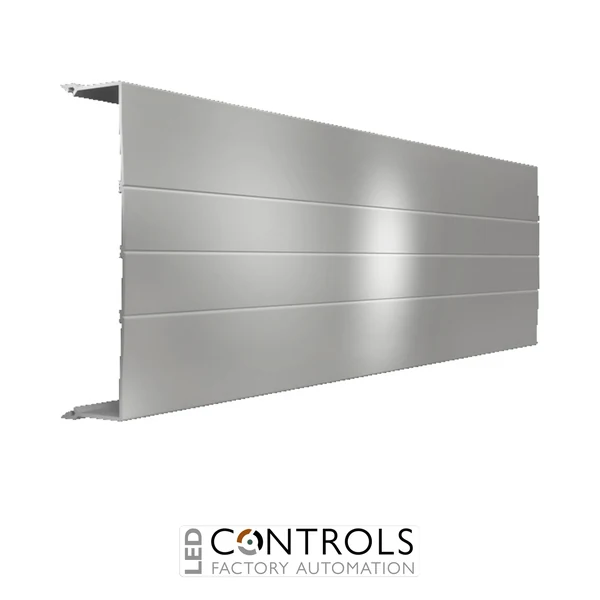

The Rittal SV 9340.210 is a 1100 mm cover section designed to provide contact hazard protection for compatible Rittal RiLine busbar systems. Developed for clip-on mounting onto the base tray, it provides a neat protective barrier around the busbar assembly while supporting safe and organised power distribution installations.
Manufactured from thermally modified hard PVC, the cover section combines electrical insulation with durable mechanical protection. The material provides fire protection corresponding to UL 94-V0, while the RAL 7035 finish integrates neatly with Rittal electrical distribution equipment and enclosure systems.
The SV 9340.210 is designed for 3-pole flat copper busbar, PLS 800 and PLS 1600 systems. Its 1100 mm length may be individually cut to suit the installation, providing flexibility when constructing or adapting RiLine power distribution assemblies.
Key Advantages
- Purpose-designed cover section for Rittal RiLine busbar systems.
- 1100 mm overall length for larger distribution assemblies.
- May be cut individually to the required length.
- Simple clip-on mounting onto the base tray.
- Suitable for 3-pole flat copper, PLS 800 and PLS 1600 busbar systems.
- Thermally modified hard PVC provides effective electrical insulation.
- UL 94-V0 fire protection classification.
- Helps provide contact hazard protection around live busbar assemblies.
Key Features
- Rittal RiLine cover section.
- 1100 mm length.
- 3-pole configuration.
- Compatible with flat copper busbar systems.
- Compatible with PLS 800 and PLS 1600 3-pole systems.
- Designed for clip-on installation onto the base tray.
- Can be cut to length for installation flexibility.
- Manufactured from thermally modified hard PVC.
- Fire protection corresponding to UL 94-V0.
- RAL 7035 colour.
- UL and C-UL listed.
Reliable Protection for Industrial Busbar Systems
Cover sections form an important part of an enclosed busbar installation by providing a protective barrier around conductive components. The Rittal SV 9340.210 works with the corresponding base tray to help prevent accidental contact with the busbar assembly while maintaining a clean and professional installation within industrial switchgear and distribution equipment.
Its clip-on construction simplifies assembly and servicing, while the ability to cut the 1100 mm section to the required length allows the protection system to be adapted to different panel layouts. Where the cover section is subjected to loading from the front, a compatible Rittal support panel should be used to provide additional stability.
Typical Applications
- Industrial electrical distribution panels.
- Rittal RiLine busbar systems.
- 3-pole flat copper busbar installations.
- PLS 800 and PLS 1600 power distribution systems.
- Switchgear and switchboard assemblies.
- Motor control centres and automation cabinets.
- Machine and plant power distribution systems.
- OEM electrical panel construction.
