Why Choose the Rittal SV 9340.214 Cover Section?

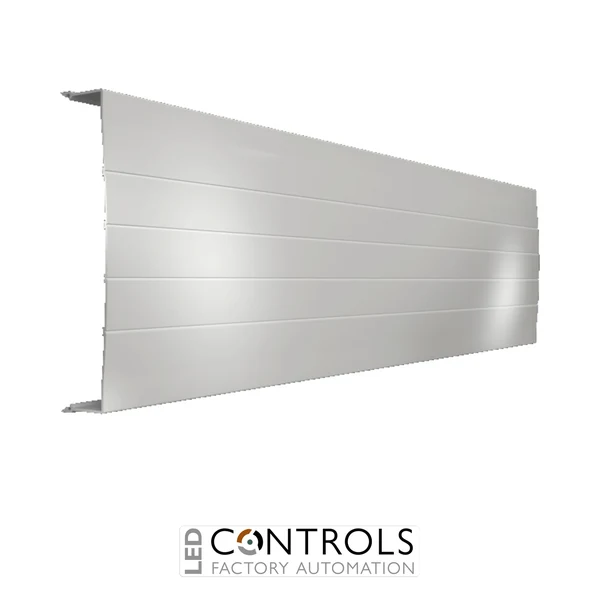

The Rittal SV 9340.214 is a 4-pole cover section designed to provide contact hazard protection for compatible Rittal RiLine busbar systems. With an overall length of 1100 mm, it clips directly onto the corresponding base tray to create a protective barrier around the busbar assembly in industrial switchgear and power distribution installations.
Manufactured from thermally modified hard PVC, the SV 9340.214 combines electrical insulation with durable mechanical protection. The material provides fire protection corresponding to UL 94-V0, while its RAL 7035 finish integrates neatly with Rittal power distribution equipment and enclosure systems.
The cover section is suitable for 4-pole flat copper busbar systems and 4-pole PLS 1600 systems. It may be individually cut to the required length, giving panel builders flexibility when configuring RiLine power distribution assemblies for different enclosure and installation layouts.
Key Advantages
- Purpose-designed 4-pole cover section for Rittal RiLine busbar systems.
- 1100 mm overall length suitable for larger power distribution assemblies.
- May be individually cut to the required length.
- Simple clip-on mounting onto the corresponding base tray.
- Compatible with 4-pole flat copper busbar and PLS 1600 systems.
- Thermally modified hard PVC provides durable electrical insulation.
- UL 94-V0 fire protection classification.
- Helps provide effective contact hazard protection around busbar assemblies.
Key Features
- Rittal RiLine cover section.
- 4-pole configuration.
- 1100 mm length.
- Suitable for flat copper busbars, 4-pole.
- Suitable for PLS 1600, 4-pole.
- Designed for clip-on mounting to the base tray.
- Can be cut to length to suit individual installations.
- Manufactured from thermally modified hard PVC.
- Fire protection corresponding to UL 94-V0.
- RAL 7035 colour.
- UL and C-UL listed.
Reliable Protection for 4-Pole Busbar Systems
Cover sections provide an important protective barrier around electrical busbars, helping reduce the risk of accidental contact with conductive components. The Rittal SV 9340.214 is specifically configured for compatible 4-pole RiLine installations and works with the corresponding base tray to create an organised and protected busbar assembly.
Its clip-on design simplifies installation and maintenance, while the ability to cut the 1100 mm section to the required length provides flexibility for different panel layouts. If the cover section is loaded from the front, Rittal specifies that a compatible support panel should be used to provide the necessary additional stability.
Typical Applications
- Industrial electrical distribution panels.
- Rittal RiLine 4-pole busbar systems.
- 4-pole flat copper busbar installations.
- PLS 1600 4-pole power distribution systems.
- Switchgear and switchboard assemblies.
- Motor control centres and automation cabinets.
- Machine and plant power distribution systems.
- OEM electrical panel construction.
