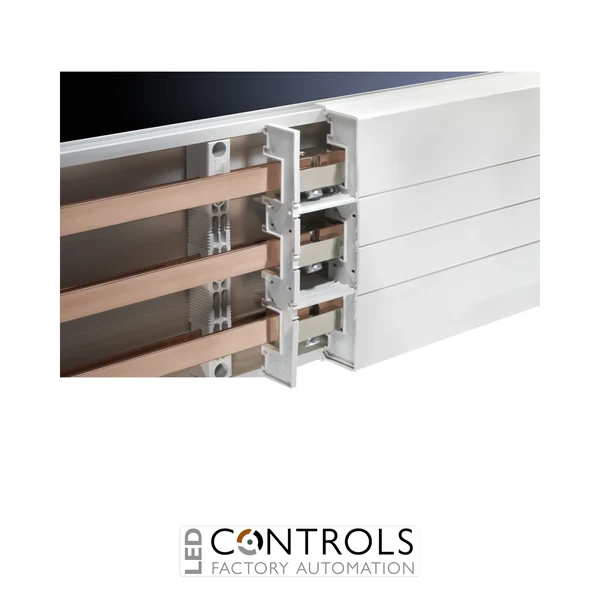

Why Choose the Rittal SV 9340.220 Support Panel?
The Rittal SV 9340.220 is a purpose-designed support panel for RiLine60 cover sections, engineered to improve the stability and protection of compatible Rittal busbar assemblies. It helps prevent side access to the cover section while providing additional mechanical support for a secure and professionally finished power distribution installation.
Designed for use with the Rittal SV 9340.200 and SV 9340.210 cover sections, the SV 9340.220 is intended for 3-pole busbar systems. Rittal recommends a mounting distance of no more than 500 mm between support panels, helping maintain the required stability of the cover section throughout the installation.
Manufactured from durable polyamide with fire behaviour corresponding to UL 94-V0, the support panel is finished in RAL 7035 to coordinate with compatible Rittal power distribution components. It is also UL + C-UL listed and supplied in packs of 5 pieces.
Key Advantages
- Provides additional stability for compatible RiLine60 cover sections.
- Helps prevent side access to the cover section.
- Designed specifically for SV 9340.200 and SV 9340.210 cover sections.
- Suitable for 3-pole busbar systems.
- Durable polyamide construction with UL 94-V0 fire behaviour.
- UL + C-UL listed for use in appropriately designed electrical assemblies.
Key Features
- Rittal RiLine60 support panel.
- Designed for compatible cover sections.
- Provides additional mechanical stability.
- Helps prevent side access to the cover section.
- 3-pole configuration.
- Compatible with SV 9340.200.
- Compatible with SV 9340.210.
- Recommended mounting distance: ≤ 500 mm.
- Manufactured from polyamide.
- Fire behaviour corresponding to UL 94-V0.
- RAL 7035 colour.
- Supplied in packs of 5 pieces.
Stable and Protected RiLine60 Cover Sections
Cover sections form part of the contact hazard protection arrangement in compatible Rittal power distribution systems. The SV 9340.220 helps reinforce these sections while restricting side access, providing both mechanical stability and additional protection within a correctly assembled RiLine60 installation.
Rittal recommends installing the support panels at intervals of no more than 500 mm. The SV 9340.220 is particularly important where the cover section requires additional support, helping panel builders maintain a stable and organised protective covering across the busbar assembly.
Typical Applications
- Rittal RiLine60 power distribution systems.
- Support of SV 9340.200 and SV 9340.210 cover sections.
- 3-pole industrial busbar assemblies.
- Industrial switchgear and distribution panels.
- Electrical control and automation cabinets.
- OEM switchgear and electrical panel building.
