Why Choose the Rittal SV 9340.340 OM Adaptor?

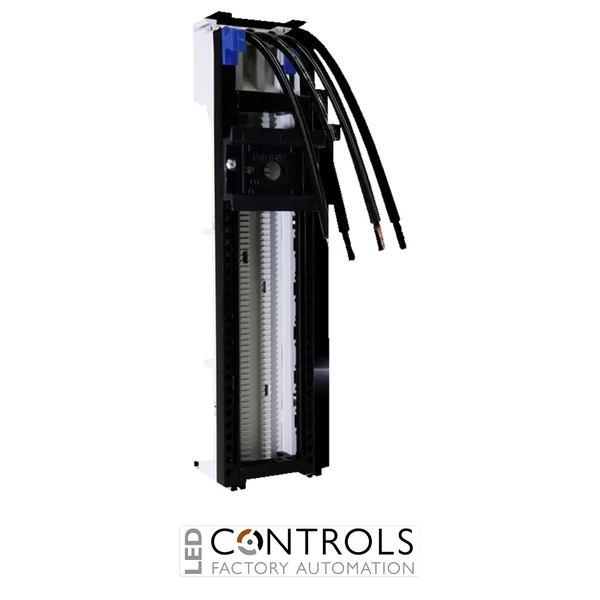

The Rittal SV 9340.340 is a 3-pole OM adaptor with connection cables designed for mounting electrical equipment directly onto compatible Rittal RiLine60 busbar systems. Rated for a maximum current of 25 A and an operating voltage of 690 V AC, 3-phase, it provides a compact mounting and connection solution for industrial power distribution assemblies.
The adaptor is designed for busbar systems with 60 mm centre-to-centre spacing and accommodates busbars with 5 mm or 10 mm thickness. Pre-fitted AWG 12 connection cables, approximately 4 mm², are supplied at a length of 130 mm, helping streamline electrical connection during panel and switchgear assembly.
With a compact 45 × 208 mm footprint, the SV 9340.340 incorporates a 45 × 170 mm support frame and one TS 45C support rail with anti-slip guard. Its polyamide chassis provides fire protection corresponding to UL 94-V0, while UL short-circuit current ratings are available for specified protective-device combinations.
Key Advantages
- 25 A maximum rated current for compatible component-mounting applications.
- Rated for operation at up to 690 V AC, 3-phase.
- Pre-fitted AWG 12 connection cables help simplify electrical installation.
- Designed for RiLine60 busbar systems with 60 mm centre-to-centre spacing.
- Integrated TS 45C support rail provides a practical component-mounting platform.
- Compact 45 mm construction width supports space-efficient switchgear layouts.
Key Features
- Rittal OM adaptor with connection cables.
- 3-pole configuration.
- Maximum rated current: 25 A.
- Rated operating voltage: 690 V AC, 3-phase.
- Connection cable size: AWG 12, approximately 4 mm².
- Connection cable length: 130 mm.
- Busbar centre-to-centre spacing: 60 mm.
- Suitable for busbars with 5 mm and 10 mm thickness.
- Support rail: 1 × TS 45C.
- Support rail height: 10 mm.
- Support frame dimensions: 45 × 170 mm.
- Polyamide construction with UL 94-V0 fire protection.
Compact Component Mounting on RiLine60 Busbars
OM adaptors allow compatible electrical equipment to be mounted directly onto a busbar distribution system, helping reduce conventional wiring and make efficient use of available enclosure space. The Rittal SV 9340.340 combines a 45 mm wide support frame, TS 45C rail and pre-fitted connection cables in a coordinated component for RiLine60 systems with 60 mm busbar spacing.
For UL applications, Rittal publishes SCCR configurations dependent on the selected protective device. These include ratings up to 65 kA at 600 V with specified fuse arrangements and up to 65 kA at 480 V with specified combination motor controllers. The applicable rating must be determined from the complete system configuration, and Rittal notes that technical data may vary for UL applications.
Typical Applications
- Rittal RiLine60 power distribution systems.
- Industrial motor control assemblies.
- Switchgear and electrical distribution panels.
- Control and automation cabinets.
- Machine and production-line electrical systems.
- OEM switchgear and industrial panel building.
