Why Choose the Rittal SV9340.450 OM Adaptor?

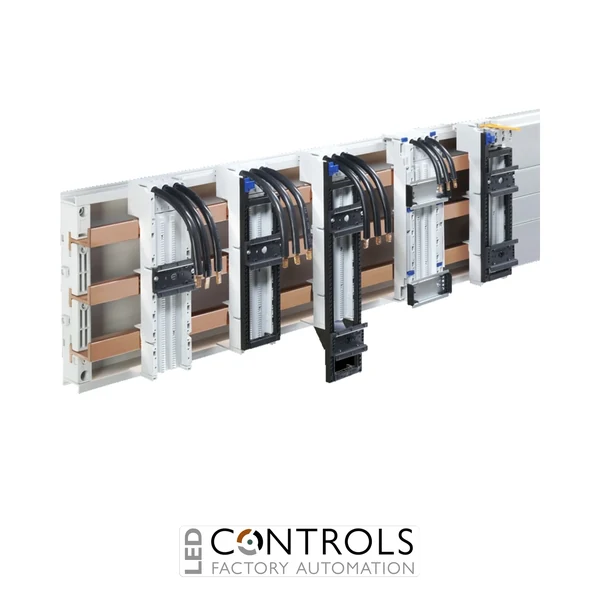

The Rittal SV9340.450 is a compact and reliable OM adaptor with connection cable designed for integration into Rittal RiLine60 busbar systems. It provides a simple solution for connecting outgoing circuits to busbar assemblies in industrial switchgear and power distribution applications. As part of the Rittal RiLine OM adaptor range, it combines a support frame, support rail and pre-fitted connection cable for efficient panel construction.
Designed for 3-pole applications, the SV9340.450 supports a maximum rated current of 65 A and a rated operating voltage of 690 V, 3~. The integrated AWG 6 connection cable provides a practical wiring solution for connecting electrical loads within compact distribution assemblies.
With a compact 55 x 272 mm design, the Rittal SV9340.450 is suitable for busbar systems with 60 mm centre-to-centre spacing and supports busbars with a height of 5 mm or 10 mm, making it ideal for flexible low-voltage power distribution configurations.
Key Advantages
- 65 A OM adaptor solution for Rittal RiLine60 busbar systems.
- 690 V, 3-phase rated operation for industrial power distribution applications.
- Integrated AWG 6 connection cable simplifies installation.
- Complete assembly including support frame and TS 55E / TS 55D-V support rails.
- Polyamide construction with UL 94-V0 fire protection for reliable industrial use.
- Compact design enables efficient use of enclosure space.
Key Features
- Rittal RiLine60 OM adaptor series.
- Rated current: 65 A.
- Rated operating voltage: 690 V, 3~.
- 3-pole connection design.
- Connection cable size: AWG 6.
- Connection cable length: 130 mm.
- Support frame width: 55 mm.
- Compatible with TS 55E and TS 55D-V support rails.
- Suitable for 5 mm and 10 mm busbar heights.
Reliable Power Distribution Connections for Industrial Systems
OM adaptors provide an efficient method of connecting outgoing circuits to modular busbar systems. The Rittal SV9340.450 combines electrical connection capability with mechanical support components, helping reduce installation time and improve the organisation of switchgear assemblies.
The RiLine60 system enables flexible and scalable low-voltage power distribution by combining busbars, adaptors and accessories in a coordinated platform. The SV9340.450 supports professional panel builders in creating safe, efficient and maintainable electrical installations.
Typical Applications
- Industrial switchgear assemblies.
- Low-voltage power distribution panels.
- Electrical control cabinets.
- Motor control centres.
- Machine building applications.
- Automation and industrial power systems.
