Why Choose the Rittal SV 9340.950 Bus-Mounting Fuse Base?

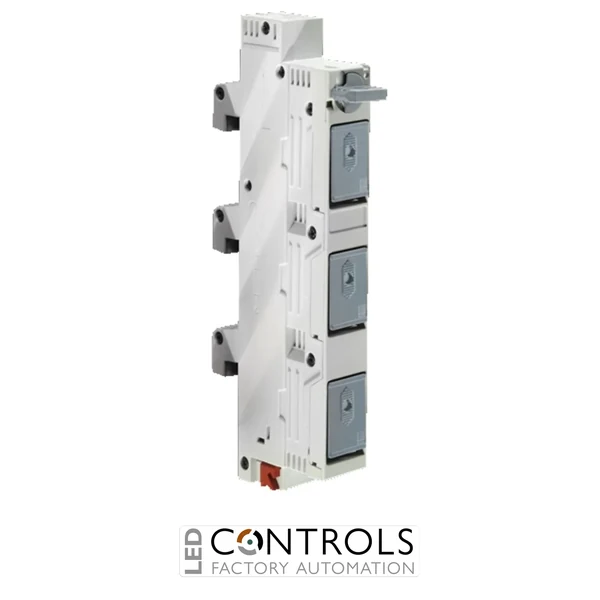

The Rittal SV 9340.950 is a robust 3-pole bus-mounting fuse base D-Switch designed for Rittal RiLine busbar systems. With a maximum rated operating current of 63 A and a rated operating voltage of 400 V AC, it provides a compact solution for fuse protection and switching within industrial power distribution assemblies.
The SV 9340.950 features integrated visual fuse monitoring with a flashing indicator and operating status display, allowing the condition of the connected fuse to be identified quickly. It supports D 01, D 02 and 10 × 38 mm fuse inserts, with the appropriate retaining springs, reducers or Neozed adaptor sleeve used according to the fuse type.
Designed for RiLine busbar systems with a 60 mm centre-to-centre spacing, the fuse base accommodates busbars with a height of 5 mm or 10 mm. Its box terminal accepts round conductors from 1.5–25 mm², providing flexibility for industrial switchgear, control panels and power distribution applications.
Key Advantages
- Purpose-designed bus-mounting fuse base D-Switch for Rittal RiLine systems.
- 63 A maximum rated operating current for industrial power distribution.
- 400 V AC, 3-phase rated operating voltage.
- 3-pole configuration for three-phase protection and distribution.
- Integrated visual fuse monitoring with flashing indicator and operating status display.
- Compatible with D 01, D 02 and 10 × 38 mm fuse inserts.
- Suitable for RiLine busbar systems with 60 mm centre spacing.
- Box terminal accepts round conductors from 1.5–25 mm².
Key Features
- Rittal SV D-Switch bus-mounting fuse base.
- 3-pole configuration.
- 63 A maximum rated operating current.
- 400 V AC rated operating voltage.
- Integrated flashing LED fuse monitoring and operating status indication.
- Compatible with D 01, D 02 and 10 × 38 mm fuse inserts.
- Reducing retaining springs supplied for D 01 and 10 × 38 mm fuses.
- Neozed adaptor sleeve available for D 02 fuse inserts.
- 60 mm busbar centre-to-centre spacing.
- Suitable for 5 mm and 10 mm busbar heights.
- Box terminal connection for 1.5–25 mm² round conductors.
- Polyamide construction with UL 94-V0 fire protection.
Reliable Fuse Protection for Industrial Busbar Systems
Bus-mounting fuse bases provide a compact way to incorporate fuse protection directly into an industrial busbar distribution system. The Rittal SV 9340.950 combines fuse protection with busbar mounting, helping reduce wiring requirements and make efficient use of space within electrical distribution assemblies.
Its integrated visual fuse monitoring provides a clear indication of fuse and operating status, while the 3-pole design is suited to three-phase power distribution. The flexible fuse compatibility and 1.5–25 mm² conductor connection range make the SV 9340.950 suitable for a variety of industrial protection and switching applications.
Typical Applications
- Industrial electrical distribution panels.
- Rittal RiLine busbar systems.
- Three-phase fuse protection assemblies.
- Industrial switchgear and switchboards.
- Motor control centres and machine control panels.
- Automation and production equipment.
- Machine and plant power distribution systems.
- OEM electrical panel construction.
