Why Choose the Rittal SV9342.254 Connection Adaptor?

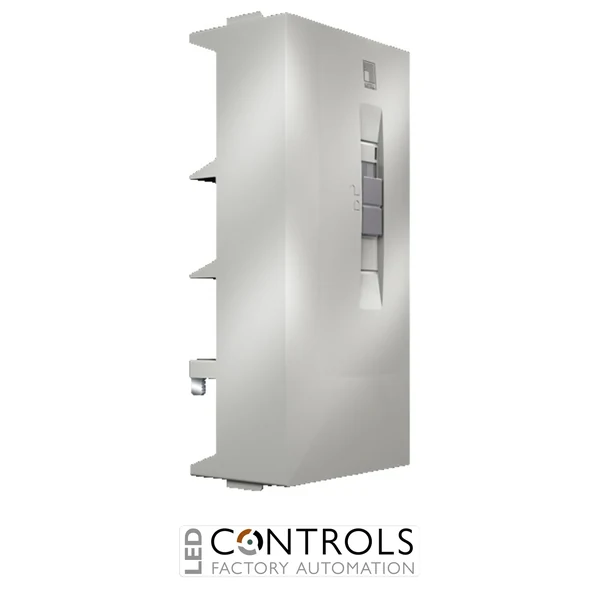

The Rittal SV9342.254 is a high-performance connection adaptor for RiLine60 busbar systems designed to provide a reliable cable connection interface for industrial power distribution assemblies. As part of the Rittal SV busbar accessory range, this 4-pole adaptor enables safe connection of round conductors to 60 mm centre-to-centre busbar systems.
Designed for applications requiring up to 250 A rated current and 690 V AC operating voltage, the SV9342.254 provides flexible cable routing with top and bottom cable outlet options. The adaptor features an ABS cover and polyamide punched section with UL 94-V0 fire protection performance for dependable use in industrial electrical installations.
With a 4-pole configuration, compatibility with 5 mm and 10 mm busbars, and support for conductor connections from 35–120 mm², the Rittal SV9342.254 is ideal for low-voltage switchgear, control panels and professional power distribution systems.
Key Advantages
- Reliable connection adaptor for Rittal RiLine60 busbar systems.
- 250 A rated current capacity for industrial power distribution applications.
- 690 V AC rated operating voltage for low-voltage installations.
- 4-pole design suitable for three-phase plus neutral systems.
- Flexible top or bottom cable outlet configuration.
- Supports round conductor connections from 35–120 mm².
Key Features
- Rittal RiLine60 busbar system accessory.
- SV9342.254 connection adaptor.
- 250 A maximum rated current.
- 690 V AC, 4-pole rated operation.
- 60 mm busbar centre-to-centre spacing.
- Top and bottom cable outlet capability.
- Round conductor connection range 35–120 mm².
- Suitable for busbars with 5 mm and 10 mm height.
- UL and C-UL listed approval.
Reliable Cable Connections for Rittal RiLine60 Systems
The Rittal RiLine60 platform provides a modular solution for low-voltage power distribution by combining busbars, supports and connection accessories. The SV9342.254 connection adaptor allows efficient integration of external power cables into compact switchgear assemblies while maintaining a secure mechanical and electrical connection.
Designed for panel builders, electrical engineers and industrial automation specialists, this adaptor supports safe and organised power distribution layouts where reliable conductor connections are essential.
Typical Applications
- Low-voltage switchgear assemblies.
- Industrial electrical cabinets.
- Power distribution boards.
- Machine building control panels.
- Rittal RiLine60 busbar installations.
- Industrial energy distribution systems.
