Why Choose the Rittal SV 9342.504 Circuit-Breaker Component Adaptor?

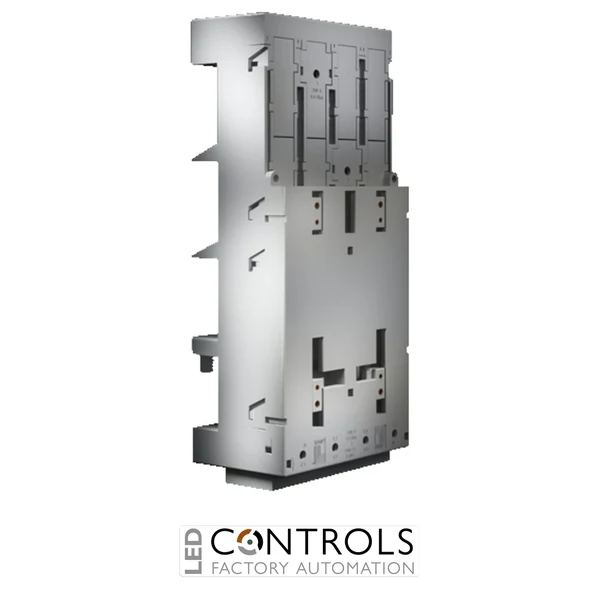

The Rittal SV 9342.504 is a robust 4-pole circuit-breaker component adaptor designed for connecting compatible circuit-breakers to Rittal RiLine60 busbar systems. With a maximum rated current of 160 A and a rated operating voltage of 690 V AC, it provides a compact and reliable solution for integrating circuit protection into industrial power distribution assemblies.
The adaptor features a top cable outlet and a box terminal connection for round conductors from 35–120 mm². It is designed for busbar systems with a 60 mm centre-to-centre spacing and accommodates busbars with heights of 5 mm or 10 mm, providing flexibility for industrial switchgear and control panel construction.
The SV 9342.504 is compatible with selected circuit-breakers from ABB, Eaton, Schneider Electric, Schrack and Siemens. Its integrated terminal cover and sliding blocks simplify installation, while the polyamide construction with UL 94-V0 fire protection provides dependable insulation within the busbar assembly.
Key Advantages
- Purpose-designed 4-pole circuit-breaker component adaptor for Rittal RiLine60 systems.
- 160 A maximum rated current for industrial power distribution applications.
- 690 V AC rated operating voltage.
- 4-pole configuration for compatible four-conductor systems.
- Top cable outlet for convenient outgoing cable routing.
- Box terminal accepts round conductors from 35–120 mm².
- Suitable for 60 mm busbar centre spacing.
- Compatible with 5 mm and 10 mm high busbars.
- Compatible with selected circuit-breakers from major manufacturers.
- Polyamide construction with UL 94-V0 fire protection.
Key Features
- Rittal RiLine60 circuit-breaker component adaptor.
- 160 A maximum rated current.
- 690 V AC, 4-phase rated operating voltage.
- 4-pole configuration.
- Top cable outlet.
- 60 mm busbar centre distance.
- Suitable for 5 mm and 10 mm busbars.
- 35–120 mm² round conductor connection.
- 18.5 × 15.5 mm laminated copper bar clamping area.
- Box terminal electrical connection.
- Terminal cover and sliding blocks included.
- Polyamide construction with UL 94-V0 fire protection.
- RAL 7035 colour.
Reliable Circuit-Breaker Integration for Industrial Busbars
Circuit-breaker component adaptors provide a practical interface between busbar systems and compatible circuit-breakers. By mounting the circuit-breaker directly within the power distribution assembly, they can reduce conventional point-to-point wiring and help create compact, organised and serviceable switchgear installations.
The Rittal SV 9342.504 combines a 160 A maximum rated current with a 690 V AC operating voltage and 4-pole configuration. Its top cable outlet and box terminal connection for 35–120 mm² round conductors provide a practical arrangement for outgoing power connections.
The adaptor is designed for selected circuit-breakers from ABB, Eaton, Schneider Electric, Schrack and Siemens, allowing compatible protective devices to be integrated into Rittal RiLine60 systems. For UL applications, Rittal notes that the technical data may vary and the applicable UL ratings should be observed.
Typical Applications
- Industrial electrical distribution panels.
- Rittal RiLine60 busbar systems.
- Four-pole circuit-breaker assemblies.
- Industrial switchgear and switchboards.
- Motor control centres and machine control panels.
- Automation and production equipment.
- Machine and plant power distribution systems.
- OEM electrical panel construction.
