Why Choose the Rittal SV9342.610 Circuit-Breaker Component Adaptor?

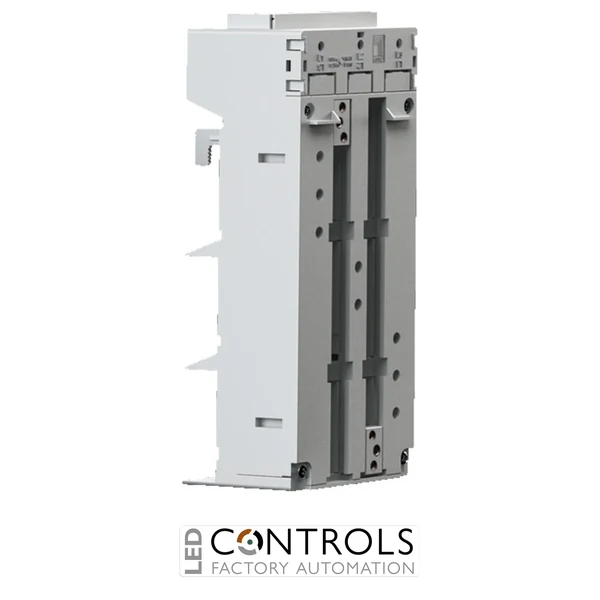

The Rittal SV9342.610 is a reliable 3-pole circuit-breaker component adaptor designed for the universal and simplified installation of circuit-breakers within Rittal RiLine busbar systems. As part of the advanced Rittal SV power distribution accessory range, it provides a secure interface between circuit-breakers and industrial busbar assemblies.
This adaptor is engineered for efficient integration of compatible circuit-breakers into switchgear systems, supporting a maximum rated current of 250 A and a rated operating voltage of 690 V AC. Its box terminal connection design and bottom cable outlet provide a practical solution for outgoing switchgear connections.
The SV9342.610 is suitable for 60 mm centre-to-centre busbar systems with 5 mm and 10 mm high busbars. It includes terminal cover and sliding blocks, allowing straightforward mounting of compatible circuit-breakers from leading manufacturers in industrial power distribution applications.
Key Advantages
- Designed for Rittal RiLine busbar systems.
- Provides universal mounting for compatible 3-pole circuit-breakers.
- Supports rated current up to 250 A.
- Suitable for operating voltages up to 690 V AC.
- Includes terminal cover and sliding blocks for easy installation.
- Compatible with multiple leading circuit-breaker manufacturers.
Key Features
- Rittal SV circuit-breaker component adaptor series.
- 3-pole circuit-breaker adaptor.
- Rated current: max. 250 A.
- Rated operating voltage: 690 V AC.
- Electrical connection: Box terminal.
- Cable outlet: Bottom.
- For 60 mm centre-to-centre busbar systems.
- Suitable for 5 mm and 10 mm busbar heights.
- UL 94 V-0 fire protection rating.
Simplified Circuit-Breaker Integration for Industrial Power Systems
Circuit-breaker component adaptors provide a practical method for mounting protective switching devices directly onto modular busbar systems. The Rittal SV9342.610 simplifies switchgear assembly by combining mechanical support, electrical connection and compatibility with a wide range of circuit-breaker designs.
Designed for panel builders, switchgear manufacturers and industrial engineers, this RiLine accessory helps create compact and efficient power distribution assemblies while maintaining reliable electrical performance.
Typical Applications
- Industrial switchgear assemblies.
- Rittal RiLine busbar systems.
- Electrical distribution panels.
- Motor control and protection systems.
- Industrial automation equipment.
- Power control cabinets.
