Why Choose the Rittal SV9343.310 Fuse-Switch Disconnector?

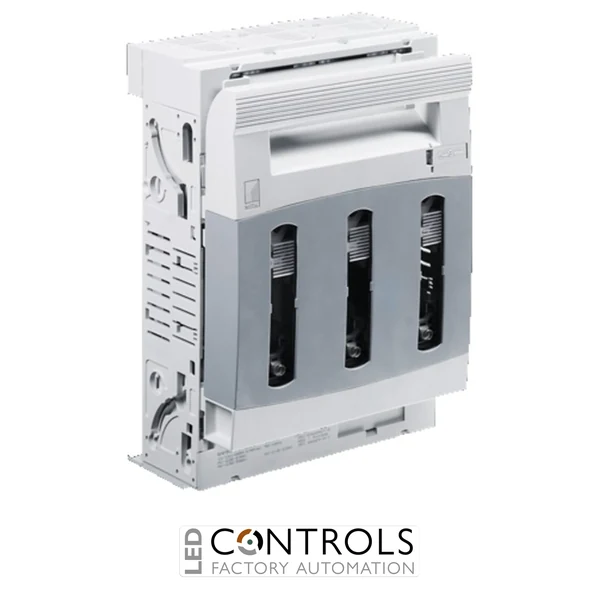

The Rittal SV9343.310 is a heavy-duty NH fuse-switch disconnector for RiLine60 power distribution systems designed to provide reliable circuit protection and safe switching in high-current industrial electrical assemblies. As part of the Rittal SV RiLine60 fuse component range, it delivers robust performance for demanding switchgear and power distribution applications.
This fuse-switch disconnector is designed for NH size 3 fuse inserts with a maximum rated operating current of 630 A and a rated operating voltage of 690 V AC, 3~. The 3-pole screw M10 connection provides a secure connection method for industrial power distribution systems, while the top and bottom cable outlet arrangement enables flexible installation.
Compatible with 60 mm centre-to-centre busbar systems, the SV9343.310 features a robust polyamide construction, silver-plated electrolytic copper contact tracks and support for 5 mm and 10 mm busbar heights, providing dependable operation in industrial switchgear environments.
Key Advantages
- Designed for Rittal RiLine60 60 mm busbar systems.
- 630 A rated operating current for high-current industrial applications.
- 690 V AC, 3-phase rated voltage for demanding switchgear systems.
- NH size 3 fuse compatibility for reliable circuit protection.
- Screw M10 connection provides a secure electrical interface.
- Top and bottom cable outlet arrangement supports flexible installation layouts.
Key Features
- Rittal SV RiLine60 fuse component series.
- NH fuse-switch disconnector design.
- Fuse size: NH 3.
- Rated operating current: 630 A.
- Rated operating voltage: 690 V AC, 3~.
- Number of poles: 3-pole.
- Electrical connection: Screw M10.
- Cable outlet: Top/bottom.
- Busbar compatibility: 5 mm and 10 mm height.
- Busbar spacing: 60 mm centre-to-centre.
Reliable Fuse Protection for High-Current Power Distribution
The Rittal SV9343.310 fuse-switch disconnector provides a secure solution for protecting high-current electrical circuits while enabling safe switching operations within RiLine60 power distribution systems. Its robust construction supports dependable performance in industrial installations.
Designed for industrial switchgear builders and panel manufacturers, this component combines high current capability, durable materials and reliable screw connection technology to support efficient and maintainable electrical distribution systems.
Typical Applications
- Industrial switchgear assemblies.
- High-current power distribution panels.
- Rittal RiLine60 busbar systems.
- Industrial machinery power supplies.
- Energy distribution systems.
- Electrical control and automation cabinets.
