Why Choose the Rittal SV 9344.540 Connection Space Cover?

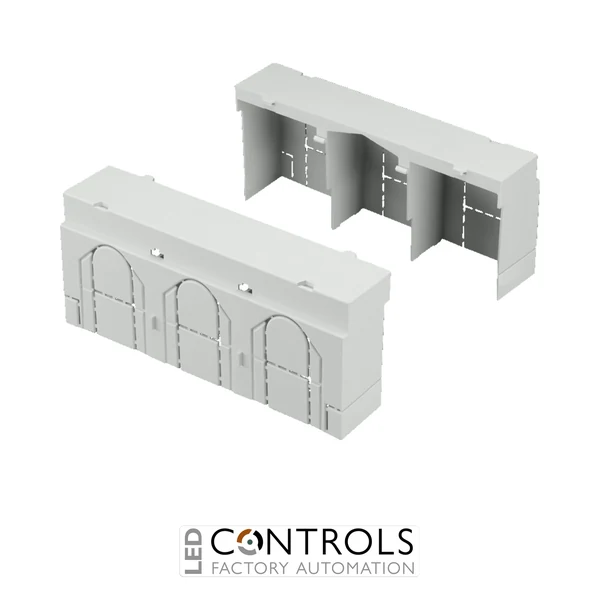

The Rittal SV 9344.540 is a purpose-designed connection space cover for NH size 2 fuse-switch disconnectors. It is used to extend the existing contact hazard protection around the connection area, helping shield exposed electrical terminations where additional clearance is required around cable lugs and conductor connections.
The cover is particularly suitable when ring terminals with long collars are used, where the standard contact protection may not provide sufficient coverage. The SV 9344.540 can be bayed as required at the top and bottom, allowing the protective area to be extended according to the physical requirements of the switchgear installation.
Manufactured from durable polyamide and finished in RAL 7035 light grey, the SV 9344.540 is specifically designed for NH size 2 fuse-switch disconnectors. Its dimensions of 210 × 70 × 42 mm provide additional connection space protection while maintaining a compact and coordinated Rittal installation.
Key Advantages
- Extends contact hazard protection around NH fuse-switch disconnector connections.
- Designed specifically for NH size 2 fuse-switch disconnectors.
- Suitable when using ring terminals with long collars.
- Can be bayed at the top and bottom to extend the protected connection space.
- Durable polyamide construction for industrial electrical applications.
- Compact 210 × 70 × 42 mm dimensions.
- Light grey RAL 7035 finish integrates with compatible Rittal switchgear components.
- Supplied in packs of 2 pieces.
Key Features
- Rittal connection space cover for NH fuse-switch disconnectors.
- Suitable NH size: 2.
- Designed to extend existing contact hazard protection.
- Suitable for installations using ring terminals with extended collars.
- Bayable at the top and bottom.
- Material: Polyamide.
- Colour: RAL 7035.
- Width: 210 mm.
- Height: 70 mm.
- Depth: 42 mm.
- Designed as a coordinated accessory for Rittal NH fuse-switch disconnectors.
Extended Contact Protection for NH Fuse-Switch Disconnectors
Connection space covers are used to extend the protective enclosure around electrical terminations when the standard cover does not fully shield larger connection hardware. This is particularly useful when ring terminals with long collars extend further from the connection area of an NH fuse-switch disconnector.
The Rittal SV 9344.540 provides this additional protection for NH size 2 devices and can be added at either the top or bottom of the connection area. Its bayable design allows multiple covers to be combined where necessary, helping panel builders adapt the protective arrangement to the conductor termination and switchgear layout.
Typical Applications
- NH size 2 fuse-switch disconnector installations.
- Industrial switchgear assemblies.
- Power distribution cabinets.
- Applications using ring terminals with long collars.
- Main and sub-distribution panels.
- Machine and plant power distribution systems.
- Industrial automation enclosures.
- OEM switchboards and electrical panels.
