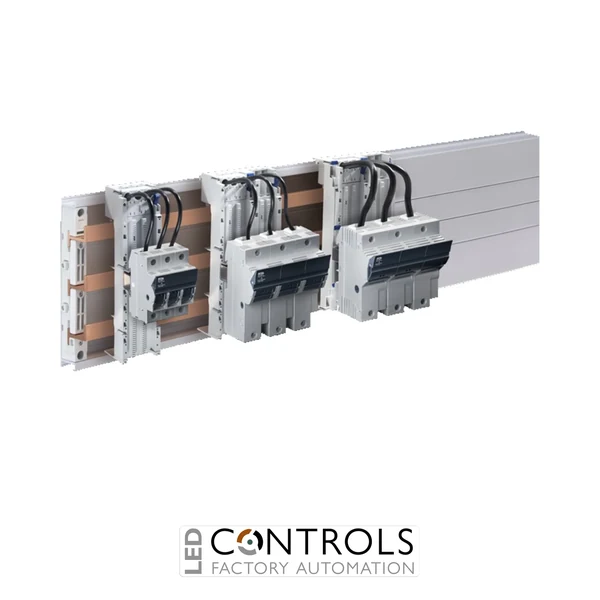

Why Choose the Rittal SV9345.015 Class J Fuseholder?
The Rittal SV9345.015 is a compact and dependable Class J fuseholder designed for secure circuit protection and efficient power distribution in industrial electrical systems. As part of the Rittal RiLine fuse component range, it provides reliable fuse integration for control panels, switchboards and industrial power assemblies.
This fuseholder is designed for Class J fuses up to 30 A and supports three-phase applications with a rated operating voltage of 600 V AC. Its modular construction allows simple installation on support rails or through RiLine component adaptor combinations for flexible panel design.
With a 3-pole configuration, 60 mm system compatibility and a compact design made from UL 94-V0 polyamide, the SV9345.015 is suitable for reliable overcurrent protection in industrial automation and electrical distribution equipment.
Key Advantages
- Compact Class J fuseholder for industrial circuit protection.
- 30 A rated current capacity for branch circuit protection.
- 600 V AC three-phase voltage rating for industrial applications.
- 3-pole design for three-phase distribution systems.
- Compatible with 60 mm RiLine busbar systems.
- Space-saving construction for modern control cabinets.
- UL listed design for reliable industrial use.
Key Features
- Rittal RiLine fuse component series.
- Class J fuseholder design.
- 30 A maximum rated operating current.
- 600 V AC rated operating voltage.
- 3-pole fuse mounting configuration.
- 60 mm system application.
- Polyamide housing with UL 94-V0 fire protection classification.
- Box terminal electrical connection.
- Suitable for Class J fuses with 21 mm diameter and 57 mm length.
Reliable Fuse Protection for Industrial Applications
Fuseholders provide a secure connection point between protective fuses and electrical distribution systems. The Rittal SV9345.015 enables Class J fuses to be integrated into compact industrial assemblies, helping protect equipment against overcurrent and short-circuit conditions.
Designed for use within Rittal RiLine power distribution solutions, this fuseholder supports efficient switchboard construction and dependable circuit protection across automation, manufacturing and industrial infrastructure applications.
Typical Applications
- Industrial control panels and switchboards.
- Machine building and automation systems.
- Electrical distribution cabinets.
- Motor control and protection assemblies.
- Factory power distribution systems.
- RiLine busbar power distribution applications.
