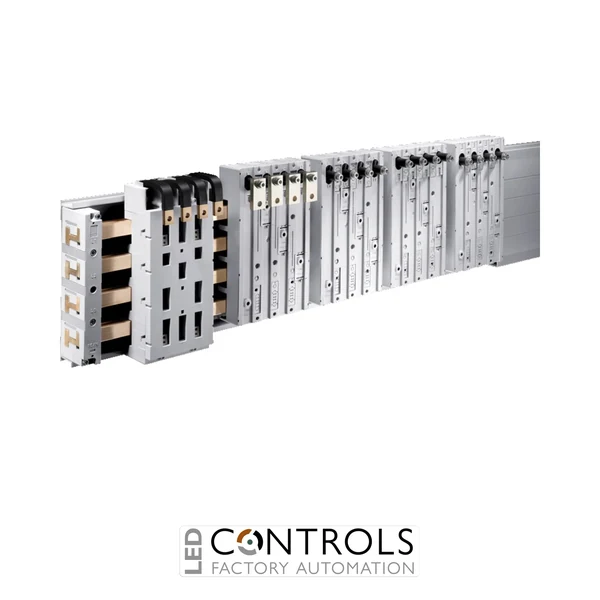

Why Choose the Rittal SV 9345.614 Circuit-Breaker Component Adaptor?
The Rittal SV 9345.614 is a robust 4-pole circuit-breaker component adaptor designed for integrating compatible circuit breakers directly onto industrial busbar systems. Rated for currents up to 250 A and an operating voltage of 690 V, it provides a practical and space-efficient connection solution for electrical distribution, switchgear and control-panel applications.
Designed for Rittal power distribution systems, the SV 9345.614 combines secure mechanical mounting with reliable electrical connectivity. It is suitable for 60 mm centre-to-centre busbar systems and includes connection straps and sliding blocks to simplify installation. The durable polyamide housing offers fire protection corresponding to UL 94-V0.
With a bottom cable outlet and compatibility with selected ABB, Eaton, Schneider Electric, Schrack and Siemens circuit breakers, the adaptor provides flexibility when configuring industrial switchgear assemblies. Its 140 mm × 310 mm format is engineered for dependable installation within compatible busbar-based power distribution systems.
Key Advantages
- Purpose-designed 4-pole circuit-breaker component adaptor for industrial power distribution.
- 250 A maximum rated current for demanding switchgear applications.
- 690 V rated operating voltage suitable for industrial electrical systems.
- Designed for 60 mm centre-to-centre busbar systems.
- Bottom cable outlet supports organised switchgear wiring.
- Compatible with circuit breakers from several leading manufacturers.
Key Features
- Rittal SV circuit-breaker component adaptor.
- 4-pole configuration.
- 250 A maximum rated current.
- 690 V rated operating voltage.
- Bottom cable outlet.
- For busbar systems with 60 mm centre-to-centre spacing.
- Suitable for busbars with 5 mm or 10 mm height.
- Polyamide construction with fire protection corresponding to UL 94-V0.
- Supplied with connection straps and sliding blocks.
- Compatible with selected ABB, Eaton, Schneider Electric, Schrack and Siemens circuit breakers.
Reliable Circuit-Breaker Integration for Busbar Systems
Circuit-breaker component adaptors provide a secure interface between protective switching devices and busbar-based power distribution systems. By mounting the circuit breaker directly to the busbar arrangement, the Rittal SV 9345.614 helps create compact, organised and service-friendly switchgear assemblies.
The adaptor is designed for 60 mm busbar systems and supports selected circuit breakers from several major manufacturers. Its bottom cable outlet enables the switch output or outgoing cable from the switchgear to be routed conveniently within the enclosure, while the supplied connection straps support dependable electrical connection.
Typical Applications
- Industrial switchgear and power distribution assemblies.
- Electrical control cabinets and enclosure systems.
- Machine and production-line power distribution.
- Busbar-mounted circuit-breaker installations.
- Industrial automation and control panels.
- OEM electrical distribution and switchgear systems.
