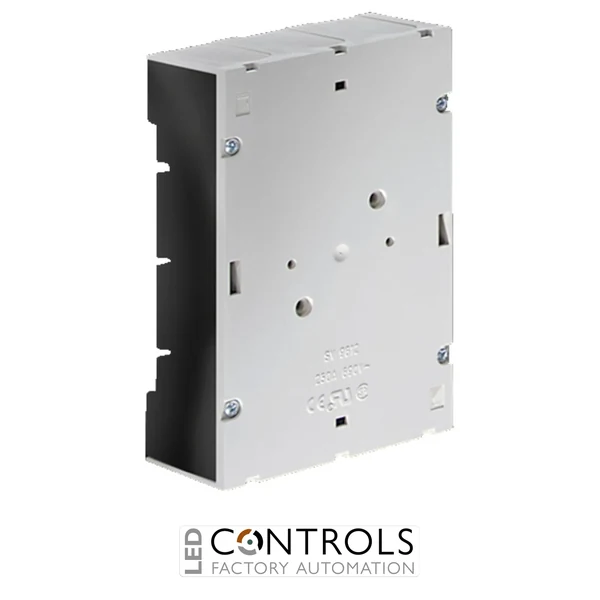

Why Choose the Rittal SV9612.000 Mini-PLS Busbar Connection Adaptor?
The Rittal SV9612.000 is a compact and reliable Mini-PLS busbar connection adaptor designed for efficient power distribution within industrial switchgear and electrical enclosure systems. As part of the Rittal RiLine Mini-PLS busbar system, it provides a secure connection between laminated copper busbars and round conductors in demanding industrial applications.
This connection adaptor enables fast and dependable integration of outgoing power connections while maintaining a compact installation footprint. Its robust polyamide construction with UL 94-V0 fire protection supports safe operation in professional electrical distribution environments.
With a rated current of 250 A and a 690 V AC rated operating voltage, the SV9612.000 is suitable for three-phase power distribution applications where reliable busbar connections are required. The adaptor supports round conductor connections from 10–120 mm² and is designed for top or bottom cable outlet installation.
Key Advantages
- Compact Mini-PLS busbar connection solution for industrial power distribution.
- 250 A rated current capacity for demanding electrical installations.
- 690 V AC operating voltage suitable for industrial switchgear systems.
- Supports 10–120 mm² round conductor connections.
- Top and bottom cable outlet options provide flexible installation.
- Durable polyamide housing with UL 94-V0 fire protection.
Key Features
- Rittal Mini-PLS busbar system component.
- 250 A maximum rated current.
- 690 V rated operating voltage.
- 3-pole busbar connection adaptor.
- Connection for round conductors from 10–120 mm².
- Laminated copper bar clamping area of 17 × 15 mm.
- Polyamide construction with RAL 7035 colour finish.
- Compact enclosure installation with top/bottom cable outlet capability.
Reliable Busbar Power Distribution
Busbar connection adaptors provide a secure and organised method of connecting external conductors to internal power distribution systems. The Rittal SV9612.000 allows electrical designers and panel builders to create compact, reliable switchgear assemblies with simplified conductor routing.
The Mini-PLS system is designed for industrial applications requiring efficient power distribution, flexible configuration and dependable electrical connections. Its compact design makes it suitable for integration into modern control cabinets and distribution enclosures.
Typical Applications
- Industrial switchgear and control cabinets.
- Power distribution panels.
- Machine building and automation systems.
- Industrial electrical enclosures.
- Control panel power distribution.
- OEM equipment manufacturing.
