Why Choose the Rittal SV 9614.100 Mini-PLS Component Adaptor?

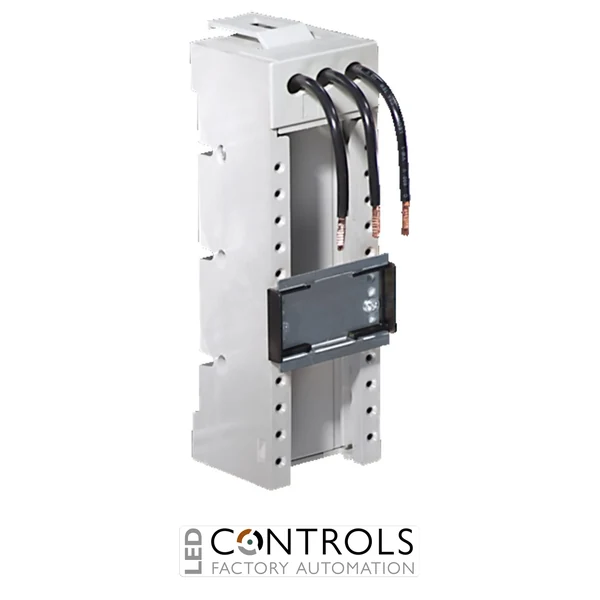

The Rittal SV 9614.100 is a compact Mini-PLS component adaptor designed for mounting compatible switching and protection devices directly onto Rittal Mini-PLS busbar systems. With a maximum rated current of 25 A and a rated operating voltage of 690 V AC, 3-phase, it provides an efficient connection solution for industrial switchgear, machinery control panels and electrical distribution assemblies.
Designed as part of the Rittal Mini-PLS power distribution system, the SV 9614.100 features a 3-pole configuration with pre-fitted AWG 12 connection cables. Its integrated support rail enables compatible motor protection and switching devices from ABB, Eaton, Schneider Electric and Siemens to be installed efficiently within compact panel layouts.
The adaptor measures 45 mm wide × 160 mm high and incorporates one 7.5 mm high support rail. Manufactured from durable polyamide with fire protection corresponding to UL 94-V0, it is engineered for dependable use in professional panel-building, automation and power distribution applications.
Key Advantages
- Compact Mini-PLS component adaptor rated up to 25 A.
- 690 V AC, 3-phase rated operating voltage for industrial electrical systems.
- 3-pole configuration for compatible three-phase switching and protection devices.
- Pre-fitted AWG 12 connection cables simplify installation.
- Integrated support rail enables straightforward device mounting.
- Compatible with selected ABB, Eaton, Schneider Electric and Siemens products.
Key Features
- Rittal Mini-PLS component adaptor.
- 25 A maximum rated current.
- 690 V AC, 3-phase rated operating voltage.
- 3-pole configuration.
- AWG 12 connection cables.
- One integrated 7.5 mm support rail.
- 45 mm × 160 mm compact dimensions.
- Polyamide construction with fire protection corresponding to UL 94-V0.
- Finished in RAL 7035.
- UR + C-UR recognised.
Reliable Device Integration for Mini-PLS Busbar Systems
Component adaptors provide a practical method for integrating switching and protection devices directly into busbar-based power distribution systems. The Rittal SV 9614.100 combines device mounting and electrical connection in a compact format, helping panel builders reduce wiring complexity and create organised industrial control assemblies.
Its AWG 12 connection cables, 25 A current rating and compatibility with selected devices from several leading manufacturers make it suitable for motor protection, switching and control applications. The narrow 45 mm width is particularly advantageous where available mounting space within switchgear assemblies is limited.
Typical Applications
- Rittal Mini-PLS power distribution systems.
- Industrial switchgear and electrical control panels.
- Motor protection and switching assemblies.
- Machine and production-line control systems.
- Factory automation electrical cabinets.
- OEM panel building and power distribution installations.
