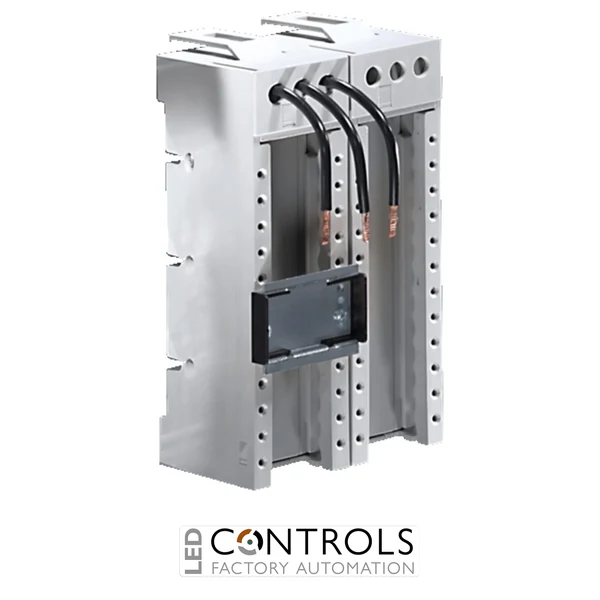

Why Choose the Rittal SV9629.010 Mini-PLS Component Adaptor?
The Rittal SV9629.010 is a compact Mini-PLS component adaptor designed for integrating compatible electrical devices into Rittal Mini-PLS busbar systems. As part of the Rittal Mini-PLS power distribution system, this three-pole adaptor provides a reliable and space-saving connection solution for industrial control panels and low-voltage distribution assemblies.
Designed for applications up to 25 A and rated for 690 V AC three-phase operation, the SV9629.010 includes pre-wired AWG 12 connection cables for simplified installation of compatible components. Its compact construction supports efficient cabinet layouts while maintaining reliable electrical performance.
With a width of 90 mm, height of 160 mm and a 7.5 mm support rail design, the Rittal SV9629.010 provides a practical solution for mounting Mini-PLS components in professional electrical distribution systems.
Key Advantages
- Mini-PLS component adaptor for industrial power distribution systems.
- 25 A rated current suitable for compact control and protection devices.
- 690 V AC three-phase rated operating voltage.
- Integrated AWG 12 connection cables for simplified wiring.
- Space-saving design for efficient electrical enclosure layouts.
- Compatible with Rittal Mini-PLS busbar systems.
- Durable polyamide housing with UL 94-V0 fire protection rating.
Key Features
- Rittal SV Mini-PLS component adaptor series.
- 25 A maximum rated current.
- 690 V AC, 3-phase rated operating voltage.
- 3-pole configuration.
- AWG 12 connection cable specification.
- Designed for Mini-PLS special busbar systems.
- Support rail height of 7.5 mm.
- Compact 90 mm × 160 mm adaptor dimensions.
- Suitable for mounting compatible electrical components within distribution assemblies.
Flexible Component Integration for Mini-PLS Systems
Mini-PLS component adaptors provide a practical interface between electrical devices and modular busbar distribution systems. The Rittal SV9629.010 simplifies installation by allowing compatible components to be integrated efficiently into compact industrial switchgear assemblies.
Designed for panel builders, electrical engineers and automation specialists, this adaptor supports organised cabinet construction while maintaining the reliability and flexibility expected from the Rittal Mini-PLS platform.
Typical Applications
- Rittal Mini-PLS busbar systems.
- Industrial control cabinets.
- Low-voltage power distribution assemblies.
- Machine building electrical panels.
- Automation and control systems.
- Industrial switchgear installations.
