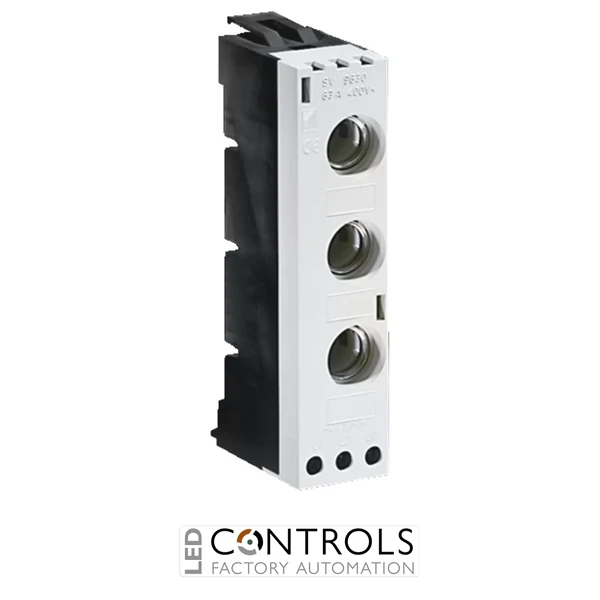

Why Choose the Rittal SV9630.000 Mini-PLS Bus-Mounting Fuse Base?
The Rittal SV9630.000 is a compact and reliable Mini-PLS bus-mounting fuse base designed for protected power distribution within industrial switchgear, control cabinets and electrical enclosure systems. As part of the Rittal RiLine Mini-PLS busbar system, it provides a space-saving solution for integrating D02 fuse protection into modern low-voltage distribution assemblies.
This fuse base allows quick and secure installation directly onto Mini-PLS busbar systems, helping simplify cabinet wiring and improve the organisation of electrical protection components. Its robust construction makes it suitable for professional panel building and industrial automation applications.
With a rated current of 63 A, a 400 V AC rated voltage and support for D02-E18 fuse links, the SV9630.000 is ideal for three-phase power distribution systems requiring reliable overcurrent protection in compact electrical enclosures.
Key Advantages
- Compact Mini-PLS bus-mounted fuse solution for industrial distribution systems.
- 63 A rated current capacity for protected outgoing circuits.
- D02-E18 fuse compatibility for reliable electrical protection.
- 3-pole design suitable for three-phase applications.
- Direct busbar mounting reduces wiring complexity and installation time.
- Space-saving design for modern control cabinets and switchgear assemblies.
Key Features
- Rittal Mini-PLS busbar system component.
- D02-E18 fuse base design.
- 63 A rated current.
- 400 V AC rated operating voltage.
- 3-pole configuration for three-phase distribution.
- Direct mounting onto Mini-PLS busbar systems.
- Suitable for industrial fuse protection applications.
- Compact installation for efficient enclosure layouts.
Reliable Fuse Protection for Industrial Distribution
Bus-mounted fuse bases provide a practical way to add circuit protection directly onto busbar systems, reducing installation space and simplifying electrical cabinet design. The Rittal SV9630.000 enables efficient integration of D02 fuse protection within compact industrial power distribution assemblies.
The Mini-PLS system is designed for panel builders and automation engineers who require reliable, flexible and space-efficient solutions for low-voltage electrical distribution and protection.
Typical Applications
- Industrial control cabinets.
- Low-voltage switchgear assemblies.
- Machine building and automation equipment.
- Power distribution panels.
- Electrical enclosure systems.
- OEM control and protection systems.
