Why Choose the Rittal SV9630.005 Mini-PLS Bus-Mounting Fuse Base?

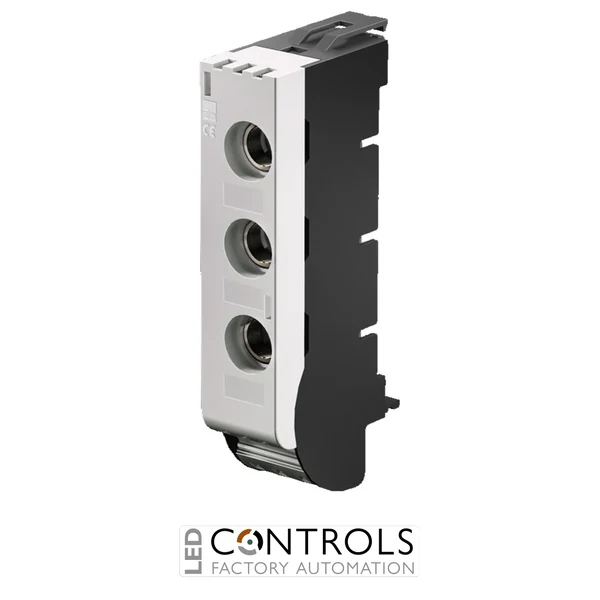

The Rittal SV9630.005 is a compact and reliable Mini-PLS bus-mounting fuse base designed for protected power distribution within industrial switchgear, control cabinets and electrical enclosure systems. As part of the Rittal RiLine Mini-PLS busbar system, it provides a space-saving solution for integrating D02-E18 fuse protection into modern low-voltage distribution assemblies.
This fuse base enables direct mounting onto Mini-PLS busbar systems, helping simplify cabinet wiring and improve the organisation of electrical protection components. Its spring terminal connection technology allows reliable connection of round conductors while maintaining a compact installation footprint.
With a rated current of 63 A, a 400 V AC rated voltage and compatibility with D02-E18 fuse inserts, the SV9630.005 is suitable for three-phase industrial power distribution applications requiring dependable circuit protection.
Key Advantages
- Compact Mini-PLS bus-mounted fuse solution for industrial distribution systems.
- 63 A rated current capacity for protected outgoing circuits.
- D02-E18 fuse compatibility for reliable overcurrent protection.
- 3-pole design suitable for three-phase applications.
- Spring terminal connection provides secure conductor installation.
- Space-saving design for efficient control cabinet layouts.
Key Features
- Rittal Mini-PLS busbar system component.
- D02-E18 fuse base design.
- 63 A maximum rated current.
- 400 V AC rated voltage.
- 3-pole configuration for three-phase power distribution.
- Spring terminal electrical connection.
- Round conductor connection from 1.5–16 mm².
- Compact dimensions for industrial enclosure installation.
Reliable Fuse Protection for Industrial Distribution
Bus-mounted fuse bases provide an efficient method of adding circuit protection directly to power distribution systems. The Rittal SV9630.005 allows electrical designers and panel builders to integrate D02 fuse protection into compact Mini-PLS assemblies while reducing wiring complexity.
The Mini-PLS system is designed for industrial applications where reliable protection, compact construction and straightforward installation are essential. Its modular approach supports flexible electrical cabinet design for automation and power distribution systems.
Typical Applications
- Industrial control cabinets.
- Low-voltage switchgear assemblies.
- Machine building applications.
- Automation and production equipment.
- Power distribution panels.
- OEM electrical enclosure systems.
