Why Choose the Rittal SV9640.325 Connection Clamp?

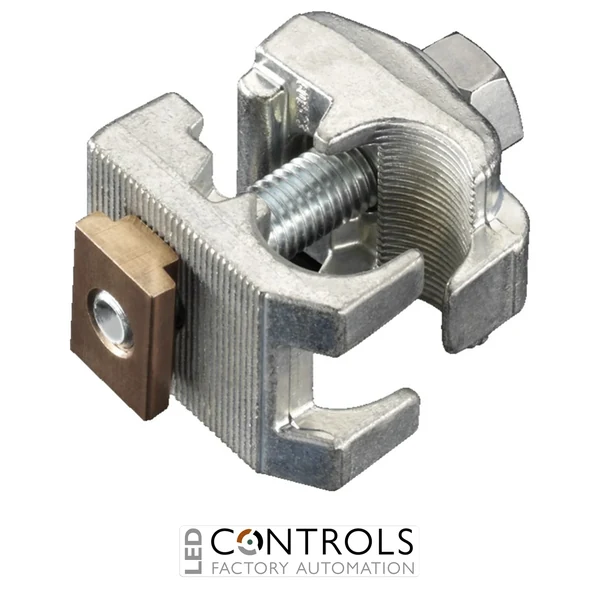

The Rittal SV9640.325 is a robust connection clamp designed for the reliable connection of large round conductors to Rittal Maxi-PLS busbar systems. It is engineered for use within power distribution and low-voltage switchgear assemblies, providing a secure mechanical and electrical connection for demanding industrial applications.
Designed for the Maxi-PLS 1600/2000 system, this connection clamp accommodates round copper or aluminium conductors with cross-sectional areas from 95 mm² to 300 mm². The supplied assembly components simplify installation and provide a purpose-designed connection between the conductor and busbar system.
The connection clamp uses a tin-plated brass clamp, zinc-plated steel terminal studs and a copper-alloy sliding block. This combination provides a durable connection assembly suitable for integration into Rittal power distribution systems and switchgear configurations.
Key Advantages
- Purpose-designed connection clamp for Rittal Maxi-PLS busbar systems.
- Suitable for round conductors from 95 mm² to 300 mm².
- Suitable for copper and aluminium conductors.
- Tin-plated brass connection clamp provides a durable conductive interface.
- Supplied with terminal studs, sliding block and assembly parts.
- Designed for reliable integration into industrial power distribution and switchgear assemblies.
Key Features
- Rittal Maxi-PLS connection clamp.
- 95 mm² to 300 mm² conductor connection range.
- Suitable for round copper and aluminium conductors.
- Compatible with Maxi-PLS 45 S and Maxi-PLS 45 busbars.
- Tin-plated brass connection clamp.
- Zinc-plated steel terminal studs.
- Copper-alloy sliding block.
- Includes required assembly parts.
- Pack quantity of 1 pc.
Reliable Conductor Connections for Power Distribution
The Rittal SV9640.325 provides a dedicated connection point for large round conductors within Maxi-PLS power distribution systems. Its 95–300 mm² connection range makes it suitable for high-capacity conductor connections used in industrial switchgear and electrical distribution assemblies.
The clamp is designed as part of the Rittal Maxi-PLS connection system, allowing conductors to be integrated directly with compatible busbar assemblies. Its supplied terminal studs, sliding block and assembly components help simplify installation while maintaining a secure connection.
Typical Applications
- Rittal Maxi-PLS 1600/2000 power distribution systems.
- Low-voltage switchgear assemblies.
- Industrial electrical distribution equipment.
- Control and power distribution panels.
- High-current copper conductor connections.
- Aluminium conductor connections within compatible installations.
- Industrial power supply and switchgear systems.
