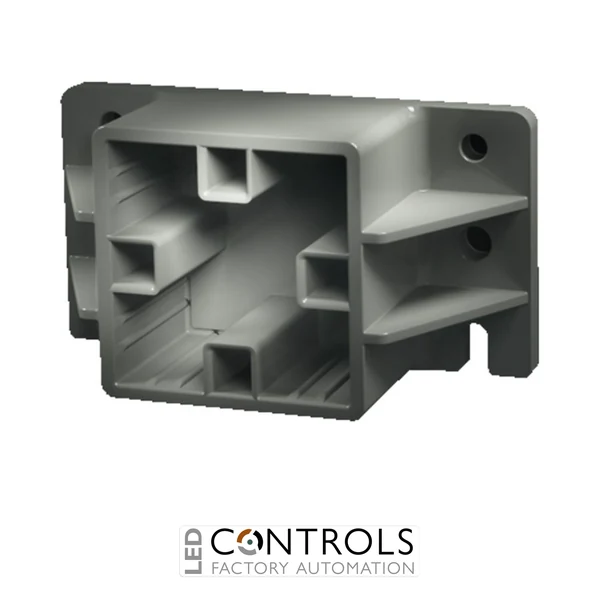

SV9649.010 Rittal End support Maxi-PLS 1600/2000

SV9649.010 Rittal End support Maxi-PLS 1600/2000

Rittal SV9649.010 Maxi-PLS end support manufactured from polyamide for secure installation of Maxi-PLS 1600/2000 busbar systems.

SKU: SV9649.010Alt SKU: 9649010MPN: SV9649.010
Price
List Price £12.35 ex VAT
Your Price (ex VAT)
£12.35
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £12.35
Trade pricing is personalised to your account

Manufacturer Lead Time

Sold in packs of 2

£12.35

Why Choose the Rittal SV9649.010 Maxi-PLS End Support?

The Rittal SV9649.010 Maxi-PLS end support is a reliable mechanical support component designed for secure installation of Rittal Maxi-PLS 1600/2000 busbar systems. It provides stable end mounting for Maxi-PLS busbars used in industrial power distribution and cable connection assemblies.

Manufactured from durable polyamide with fire protection performance according to UL 94-V0, the SV9649.010 provides dependable mechanical support while maintaining compatibility with Rittal modular power distribution solutions.

The stepped support design allows simple cable installation and enables Maxi-PLS busbars to be attached at the sides by inserting them into the support. Supplied as a pack of 2 pieces, it is suitable for Maxi-PLS 45 S and Maxi-PLS 45 busbar applications.

Key Advantages

  • Designed specifically for Rittal Maxi-PLS 1600/2000 busbar systems.
  • Provides secure end support for Maxi-PLS busbars.
  • Manufactured from durable polyamide material.
  • UL 94-V0 fire protection rating for enhanced installation safety.
  • Stepped configuration supports simple cable installation.
  • Supplied with assembly components for convenient installation.

Key Features

  • Rittal Maxi-PLS power distribution accessory.
  • End support design for Maxi-PLS busbars.
  • Polyamide construction.
  • Colour similar to RAL 9011.
  • Suitable for Maxi-PLS 1600 and Maxi-PLS 2000 systems.
  • Supports side attachment of Maxi-PLS busbars.
  • Pack quantity of 2 pieces.

Reliable Support for Industrial Power Distribution

Rittal Maxi-PLS components are engineered to provide flexible and dependable solutions for industrial power distribution systems. The SV9649.010 end support helps maintain accurate busbar positioning while supporting safe and efficient system construction.

By providing a stable mounting interface for Maxi-PLS busbars, this component assists panel builders and electrical engineers in creating robust, maintainable and scalable switchgear assemblies.

Typical Applications

  • Industrial switchgear assemblies.
  • Maxi-PLS power distribution systems.
  • Electrical distribution cabinets.
  • Machine building power systems.
  • Control panel construction.
  • Industrial energy distribution installations.

Technical Specifications

Material Polyamide
Accessory Type Busbar System
Manufacturer Rittal
Series Maxi-PLS 1600/2000
Model SV9649.010
Product type End support for Maxi-PLS busbars
Fire protection UL 94-V0
Colour Similar to RAL 9011
Suitable for busbars Maxi-PLS 45 S and Maxi-PLS 45
Packaging unit 2 pieces
Net weight 0.23 kg
Gross weight 0.284 kg

Frequently Asked Questions

What is the Rittal SV9649.010 used for?

The SV9649.010 is an end support used for attaching and supporting Rittal Maxi-PLS busbars in industrial power distribution systems.

Which Rittal systems are compatible with this end support?

The SV9649.010 is suitable for Maxi-PLS 1600 and Maxi-PLS 2000 busbar systems.

What material is the SV9649.010 made from?

The end support is manufactured from polyamide with fire protection performance according to UL 94-V0.

How many pieces are included in the pack?

The SV9649.010 is supplied as a pack containing 2 pieces.

How does this component help with installation?

The stepped support design enables simple cable installation and allows Maxi-PLS busbars to be attached by inserting them into the supports.

Trusted by Industrial Power System Designers

Rittal Maxi-PLS accessories are widely used by electrical engineers and panel builders to create reliable, modular and service-friendly industrial power distribution solutions.
