Why Choose the Rittal SV9650.191 Longitudinal Connector?

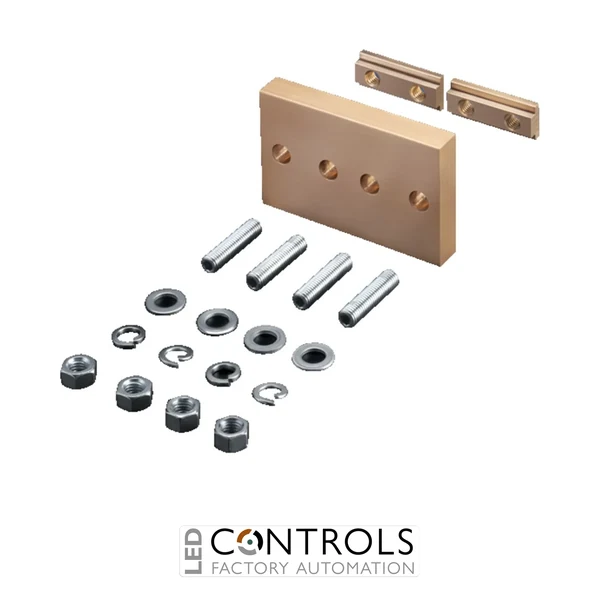

The Rittal SV9650.191 is a robust E-Cu longitudinal connector designed for the simple baying connection of Rittal Maxi-PLS busbars. It provides a purpose-designed electrical and mechanical connection between compatible busbar sections, making it suitable for industrial power distribution and low-voltage switchgear assemblies.
Designed for the Maxi-PLS 3200 busbar system, the SV9650.191 is suitable for Maxi-PLS 60 busbars. Its E-Cu construction provides a highly conductive connection, while the supplied sliding blocks, bolts and fixing hardware support straightforward installation.
The longitudinal connector is supplied as a complete assembly and is designed to simplify the extension and joining of Maxi-PLS busbar systems. With a net weight of 2.21 kg and a copper content of 1.87 kg per piece, it provides a substantial copper connection for high-capacity power distribution applications.
Key Advantages
- Purpose-designed longitudinal connector for Rittal Maxi-PLS busbars.
- Designed for simple baying connection of Maxi-PLS busbar sections.
- E-Cu construction provides excellent electrical conductivity.
- Suitable for Maxi-PLS 3200 power distribution systems.
- Designed to fit Maxi-PLS 60 busbars.
- Supplied with sliding blocks, bolts and assembly components.
- Supports efficient installation of extended busbar arrangements.
- UL and C-UL listed for approved applications.
Key Features
- Rittal Maxi-PLS longitudinal connector.
- E-Cu construction.
- Designed for Maxi-PLS 3200.
- Suitable for Maxi-PLS 60 busbars.
- For simple baying connection of Maxi-PLS busbars.
- Includes longitudinal connectors.
- Includes sliding blocks.
- Includes bolts and fixing hardware.
- 1 pc packaging unit.
- 1.87 kg copper content per piece.
Reliable Maxi-PLS Busbar Connections
The Rittal SV9650.191 provides a dedicated longitudinal connection between compatible Maxi-PLS busbar sections. By using an E-Cu connector, the assembly provides a highly conductive path while maintaining the mechanical integrity required for industrial power distribution systems.
The supplied sliding blocks, bolts and fixing hardware allow the connector to be installed as part of a compatible Maxi-PLS assembly. This makes the SV9650.191 suitable for extending busbar systems and creating structured power distribution arrangements within switchgear and electrical distribution equipment.
Typical Applications
- Rittal Maxi-PLS 3200 power distribution systems.
- Maxi-PLS 60 busbar assemblies.
- Longitudinal joining of busbar sections.
- Low-voltage switchgear assemblies.
- Industrial power distribution panels.
- Electrical distribution equipment.
- Industrial control and switchgear systems.
