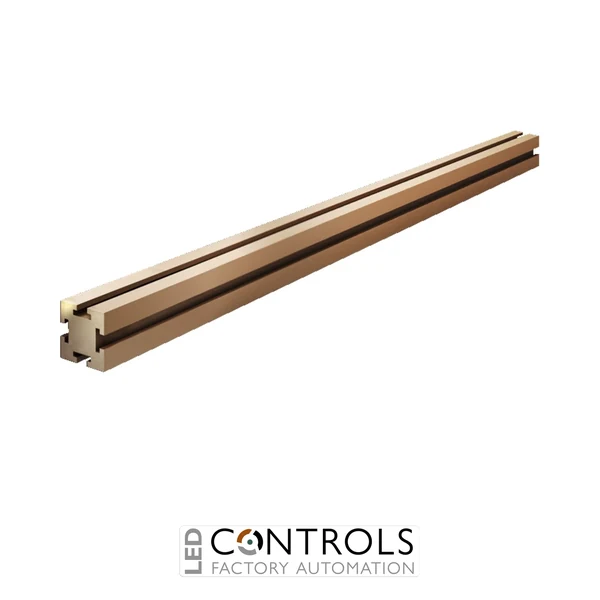

Why Choose the Rittal Maxi-PLS 3200 SV9659.360 Busbar?
The Rittal Maxi-PLS 3200 SV9659.360 is a high-capacity E-Cu copper busbar designed for reliable power distribution and cable connection systems within industrial switchgear and enclosure assemblies. As part of the Rittal Maxi-PLS busbar system, it provides a robust solution for creating flexible and efficient power distribution systems in demanding industrial applications.
Manufactured from high-quality electrolytic copper (E-Cu), the SV9659.360 busbar offers excellent electrical conductivity and mechanical strength. Its compact 60 × 60 mm profile allows integration into Rittal power distribution systems while supporting modular connection arrangements for industrial control cabinets and switchgear installations.
With a length of 2,400 mm, a cross-section of 2,323 mm² and suitability for cable connection systems up to 6300 A, the Rittal Maxi-PLS 3200 SV9659.360 is designed for large-scale power distribution applications where dependable current carrying capability and flexible installation are required.
Key Advantages
- High-performance E-Cu copper busbar for industrial power distribution.
- 60 × 60 mm profile designed for the Maxi-PLS 60 system.
- 2323 mm² conductor cross-section for high current applications.
- Suitable for cable connection systems up to 6300 A.
- Can be individually cut to the required installation length.
- Modular design enables flexible switchgear and enclosure integration.
Key Features
- Rittal Maxi-PLS busbar system component.
- Electrolytic copper (E-Cu) construction.
- 60 × 60 mm busbar dimensions.
- 2323 mm² bar cross-section.
- 2400 mm standard length.
- Designed for Maxi-PLS 60 power distribution systems.
- Supports modular cable connection assemblies.
- Suitable for industrial switchgear and control cabinet applications.
Reliable Power Distribution for Industrial Applications
Busbar systems provide an efficient method of distributing electrical power inside industrial enclosures and switchgear assemblies. The Rittal Maxi-PLS system combines compact construction with flexible connection options, helping engineers create reliable and scalable power distribution solutions.
The SV9659.360 Maxi-PLS busbar is engineered for use with compatible Rittal system components, enabling straightforward assembly of cable connection systems and supporting modern industrial electrical infrastructure.
Typical Applications
- Industrial switchgear assemblies.
- Power distribution cabinets.
- Control and automation panels.
- Machine building electrical systems.
- Industrial enclosure power systems.
- High-current cable connection applications.
