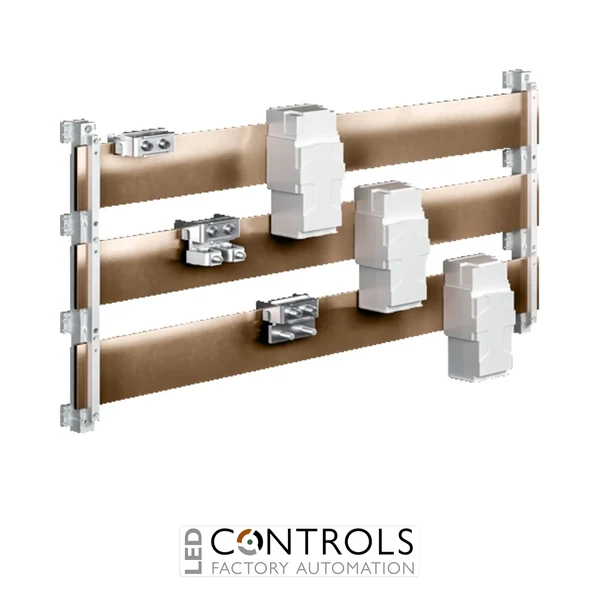

Rittal SV9677.915 connection block for cables and laminated copper bars with 1000 A rating, 690 V AC operation and 185-300 mm² conductor connection.
£119.41
The Rittal SV9677.915 is a high-performance connection block designed for connecting cables and laminated copper bars within Rittal RiLine busbar power distribution systems. It provides a reliable high-current connection solution for industrial low-voltage switchgear assemblies requiring secure conductor termination.
Designed for 185 mm busbar systems, the SV9677.915 features a box terminal connection and supports round conductor connections from 185–300 mm². Its top/bottom cable outlet design provides installation flexibility for different switchgear configurations.
With a 1-pole configuration, 1,000 A maximum rated current and 690 V AC rated voltage, the Rittal SV9677.915 is suitable for demanding industrial power distribution applications. The connection block combines zinc-plated sheet steel and tin-plated E-Cu components for reliable mechanical and electrical performance.
Rittal connection blocks provide dependable interfaces between external conductors and modular busbar systems. The SV9677.915 enables efficient connection of large conductors and laminated copper bars while maintaining the mechanical strength and electrical reliability required for industrial installations.
Designed for professional switchgear construction, this connection block supports flexible cable routing and compact power distribution solutions in electrical cabinets, switchboards and industrial control systems.
| Manufacturer | Rittal |
|---|---|
| Series | RiLine Busbar System Accessories |
| Model | SV9677.915 |
| Product type | Connection block |
| Application | Connection of cables and laminated copper bars |
| Number of poles | 1-pole |
| Rated current | Maximum 1,000 A |
| Rated voltage | 690 V AC |
| Electrical connection | Box terminal |
| Cable outlet | Top/bottom |
| Round conductor connection | 185–300 mm² |
| Suitable busbar height | 10 mm |
| Width | 98 mm |
| Material | Sheet steel, zinc-plated; E-Cu, tin-plated |
| Packaging unit | 1 pc |
| Net weight | 1.2 kg |
| Gross weight | 1.35 kg |
The SV9677.915 is a connection block used for connecting cables and laminated copper bars in Rittal busbar power distribution systems.
The Rittal SV9677.915 has a maximum rated current of 1,000 A.
The connection block supports round conductor connections from 185–300 mm².
The SV9677.915 uses a box terminal connection for secure conductor installation.
The Rittal SV9677.915 supports both top and bottom cable outlet configurations.
Rittal RiLine connection accessories are widely used in industrial power distribution projects to provide secure, reliable and efficient electrical connection solutions.
