Finder 1C.B1.9.005.0007POA – 1C Series BLISS – BLISS2 bundle

Why Choose the Finder 1C.B1.9.005.0007POA BLISS2 Smart Thermostat and Gateway Kit?

The Finder 1C.B1.9.005.0007POA is the complete BLISS2 smart thermostat kit: the BLISS2 programmable room thermostat packed together with Finder's second-generation GATEWAY2 (1Y.GU.005.1), accessories and technical documentation. It gives you everything needed for app control, Amazon Alexa and Google Assistant voice control in a single pack, with no separate gateway to source.

Part of the Finder Series 1C, BLISS2 combines accurate electronic room temperature regulation, weekly heating schedules, humidity display and an illuminated LED matrix interface with touch-sensitive controls. The included gateway links the thermostat to your 2.4 GHz Wi-Fi network, so temperatures and schedules can be checked and changed from anywhere using the Finder YOU app.

The thermostat runs on three AAA batteries with an estimated life of around 18 months, so no mains supply is needed at the thermostat position. Its volt-free 5 A, 250 V AC changeover contact provides a conventional on/off heating demand signal for compatible boilers, valves, pumps and other heating or cooling equipment.

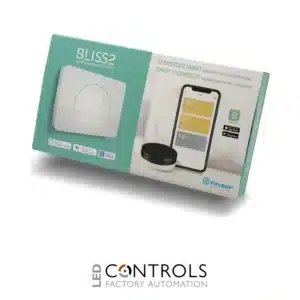

What's in the pack: BLISS2 smart thermostat (1C.B1.9.005.0007) and second-generation GATEWAY2 (1Y.GU.005.1), plus accessories and technical documentation. If you already have a compatible second-generation gateway, the BLISS2 thermostat is also available on its own.

Key Advantages

• Complete kit: Thermostat and the required second-generation gateway in one pack, ready for connected operation.
• Amazon Alexa and Google Assistant: Adjust the target room temperature with supported voice commands once the gateway and voice assistant are set up.
• Finder YOU app: Remote temperature control and weekly programming from a compatible Android or iOS smartphone.
• Programmable weekly schedules: Different temperatures for different times of day to match household routines.
• Timed and permanent manual modes: Override the schedule for a set number of hours, from 1 hour upwards, or hold a fixed temperature until cancelled.
• Battery-powered thermostat: Three AAA batteries, no supply wiring needed at the thermostat.
• Volt-free relay output: 5 A, 250 V AC changeover contact for a conventional on/off heating demand.
• Heating and cooling: Supports heating and cooling operation when correctly configured.
• Temperature and humidity display: Shows room temperature and relative humidity.
• 868 MHz radio link between thermostat and gateway; gateway connects over 2.4 GHz Wi-Fi.
• Expandable: Add Finder radio actuators for wireless switching or multi-zone control.
• Neat installation: Surface wall mounting, or over "503" or 60 mm round wall boxes.

Key Features

• Manufacturer: Finder.
• Kit reference: 1C.B1.9.005.0007POA (Finder pack code 1C.B1.9.005.0007.POA).
• Kit contents: BLISS2 thermostat 1C.B1.9.005.0007 + GATEWAY2 1Y.GU.005.1, accessories and documentation.
• Product family: BLISS2, Finder Series 1C.
• Device type: Smart programmable electronic room thermostat with Wi-Fi gateway.
• Thermostat power supply: 3 x 1.5 V AAA alkaline batteries (LR03).
• Estimated battery life: Approximately 18 months, depending on use.
• Optional thermostat supply: Finder 01C.02.8.230.0500 (batteries must be removed when used).
• Gateway power supply: 5 V DC, minimum 1 A.
• Temperature setting range: +5°C to +37°C.
• Resolution: 0.1°C.
• Relay output: 1 changeover (SPDT) volt-free contact, 5 A at 250 V AC.
• Thermostat radio: 868 MHz RF.
• Gateway connectivity: 2.4 GHz Wi-Fi.
• App: Finder YOU (Android and iOS).
• Voice assistants: Amazon Alexa and Google Assistant.
• Operating modes: Automatic, manual (timed or permanent) and off with +5°C frost protection.
• Humidity display: Relative humidity, %RH.
• Protection rating: IP20 (indoor use).
• Mounting: Wall surface, or over "503" or 60 mm round wall boxes, approximately 1.5 m above floor level.

Smart Heating Control Straight Out of the Box

Because the kit includes GATEWAY2, BLISS2 can be connected to your home Wi-Fi as soon as it is installed. Using the Finder YOU app you can create weekly heating programmes, change the target temperature remotely and check the room temperature and humidity from your phone.

A typical schedule might raise the temperature before you get up, lower it while the property is empty, bring it back up before you return home and reduce it again overnight. Correctly configured schedules help avoid heating rooms when nobody needs them.

When you need a short-term change, the timed manual mode holds a different temperature for a set number of hours before returning automatically to the weekly programme. Permanent manual mode keeps a fixed temperature until it is cancelled in the app or on the thermostat.

Once the gateway is linked to Amazon Alexa or Google Assistant, commands such as "Alexa, set the living room to 21 degrees" change the target temperature without touching the thermostat or opening the app.

Which Boilers and Heating Systems Does BLISS2 Work With?

BLISS2 controls heating through a volt-free changeover relay (terminals 6 COM and 7 NO), rated 5 A at 250 V AC. It closes the contact when heat is called for and opens it when the room is up to temperature, which is how a conventional on/off room thermostat works. It therefore suits heating equipment with a standard on/off room thermostat connection, including many gas combi, system and regular boilers, zone valves and circulating pumps.

Finder states that BLISS2 can interface with traditional radiator, underfloor, heat pump and fan coil systems, and that it is a suitable replacement for most Finder or third-party room thermostats with equivalent on/off functionality.

Not suitable for modulating control: Finder documents BLISS2 with an on/off relay output only. It does not provide OpenTherm or manufacturer-specific bus control (such as boiler-brand digital thermostat connections). Boilers that rely on these for modulation will need to be wired to their standard on/off thermostat terminals instead, where the boiler provides them.

Before you buy, check your boiler manual for a conventional room thermostat or "switched live / volt-free" input, and confirm the load on the contact stays within 5 A at 250 V AC. Compatibility depends on the exact boiler model and its control terminals, not just the brand.

Where running a cable from the thermostat to the boiler or valve is difficult, the Finder 13.21.8.230.S000 radio actuator can switch the boiler, a zone valve or a fan coil wirelessly from BLISS2. Several actuators can be paired for multi-zone systems. Wiring to boilers and heating controls should be carried out by a competent installer with the circuits isolated.

Compatible Finder Accessories

• Finder 13.21.8.230.S000 Radio Actuator: 868 MHz wireless switching for boilers, zone valves and fan coils, and for multi-zone heating or cooling.
• Finder 01C.02.8.230.0500 Power Supply: Optional mains supply for the thermostat where battery operation is not preferred.
• Finder 1C.B1.9.005.0007 BLISS2 Thermostat: Additional thermostats for further rooms or zones on the same gateway.
• Finder 1Y.GU.005.1 GATEWAY2: Available separately as a spare or for a second property.

Typical Applications

• Upgrading a conventional room thermostat to smart, app-controlled heating.
• Gas combi, system and regular boilers with an on/off room thermostat input.
• Amazon Alexa and Google Assistant smart homes.
• Remote heating control for holiday homes, rental properties and second homes.
• Radiator, underfloor, heat pump and fan coil systems with on/off control.
• Multi-zone heating using Finder radio actuators and zone valves.
• Heating and cooling control with summer and winter operation.
• Room temperature and humidity monitoring.
• Small office and light-commercial room temperature control.
• Finder YESLY and BLISS2 connected-home installations.
