Why Choose the ABB ES1804VC4K IS2 Cabinet?

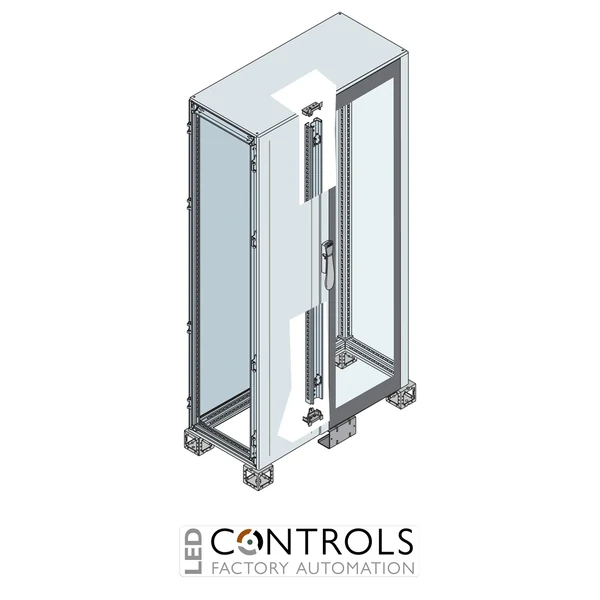

The ABB ES1804VC4K is a pre-assembled IS2 automation cabinet with a glazed door and 400 mm-wide internal cable compartment. Designed as part of the ABB IS2 modular enclosure system, it combines protected equipment mounting space with a dedicated internal area for cable routing and termination, making it well suited to industrial control and automation installations.
The cabinet has nominal dimensions of 1800 mm high × 1000 mm wide × 400 mm deep. Within the 1000 mm-wide structure, the 400 mm internal cable compartment separates conductor routing from the main equipment area, while the glazed front door allows installed devices and indicators to remain visible without opening the enclosure.
The ES1804VC4K is supplied as a pre-assembled structure with a removable roof, glazed door, cable-compartment door, upright, intermediate crosspiece, rear panel and 100 mm-high plinth. The cabinet can then be completed with the appropriate plinth flanges, cable-entry flanges and side panels, providing panel builders with a flexible foundation for professional industrial automation assemblies.
Key Advantages
- Complete ABB IS2 pre-assembled cabinet for industrial automation applications.
- Glazed front door allows equipment status and indicators to be viewed while the cabinet remains closed.
- Integrated 400 mm-wide internal cable compartment provides dedicated conductor-management space.
- Nominal 1800 × 1000 × 400 mm cabinet dimensions.
- Separates cable routing from the main equipment-mounting area for a more organised installation.
- Supplied with key structural components already assembled to simplify panel construction.
Key Features
- ABB IS2 Enclosures for Automation cabinet.
- Glazed door with internal cable compartment.
- 1800 mm nominal height.
- 1000 mm nominal width.
- 400 mm nominal depth.
- 400 mm-wide internal cable compartment.
- Pre-assembled cabinet structure for faster panel building.
- Removable roof for installation and cable-management flexibility.
- Includes dedicated cable-compartment door.
- Includes upright and intermediate crosspiece.
- Includes rear panel.
- Includes 100 mm-high plinth formed from four corner pieces.
- Designed to be completed with suitable plinth flanges, cable-entry flanges and side panels.
- Suitable for modular industrial automation and distribution assemblies.
Integrated Cable Management for Automation Cabinets
An internal cable compartment provides a dedicated area for routing and organising incoming and outgoing conductors while keeping them separated from the main equipment-mounting section. In complex automation panels, this arrangement can simplify wiring, improve accessibility and preserve useful installation space for control, protection and switching equipment.
The ABB ES1804VC4K combines a 600 mm-wide main equipment section with a 400 mm-wide internal cable compartment within its 1000 mm overall nominal width. Together with the glazed door, removable roof and modular IS2 construction, this configuration provides a practical enclosure platform for industrial automation systems where equipment visibility and organised cable management are both important.
Typical Applications
- Industrial automation and process-control panels.
- PLC, HMI and control-system cabinets.
- Power distribution and motor-control assemblies.
- Machine-control electrical panels.
- Factory automation systems requiring visible internal equipment.
- Installations requiring a dedicated internal cable-routing compartment.
