Why Choose the ABB ES1806VC2K IS2 Cabinet?

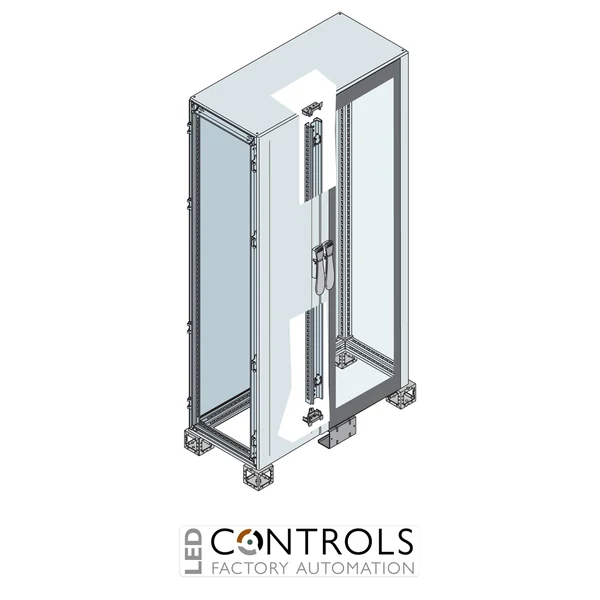

The ABB ES1806VC2K is a pre-assembled IS2 industrial automation cabinet with an internal cable container. Designed as part of the ABB IS2 Enclosures for Automation system, it combines a substantial equipment compartment with a dedicated cable-routing section for organised installation of electrical, control and automation systems.
The ES1806VC2K has nominal structure dimensions of 1800 mm high × 1000 mm wide × 600 mm deep and incorporates a 200 mm-wide internal cable container. This configuration provides an 800 mm-wide main equipment area while reserving dedicated space for conductor routing and termination within the overall cabinet structure.
The cabinet is supplied as a pre-assembled structure with a removable roof, blind door, cable-container door, upright, intermediate crosspiece, rear panel and 100 mm-high plinth formed from four angle pieces. It is designed to be completed with the appropriate plinth flanges, cable-entry flanges and side panels, giving panel builders a flexible foundation for professional industrial electrical assemblies.
Key Advantages
- Pre-assembled ABB IS2 cabinet with integrated internal cable container.
- Nominal 1800 × 1000 × 600 mm structure provides substantial equipment capacity.
- Dedicated 200 mm-wide internal cable container supports organised conductor routing and termination.
- Separates cable-management space from the main equipment-mounting section.
- Supplied with key structural and closure components already assembled.
- Modular IS2 construction supports application-specific completion with compatible ABB accessories.
Key Features
- ABB IS2 Enclosures for Automation cabinet.
- Blind-door cabinet with internal cable container.
- 1800 mm nominal height.
- 1000 mm nominal width.
- 600 mm nominal depth.
- 200 mm-wide internal cable container.
- Approximate 800 mm-wide main equipment section within the nominal cabinet width.
- Removable roof for installation and cable-management access.
- Includes blind main door and dedicated cable-container door.
- Includes upright and intermediate crosspiece.
- Rear panel included.
- Includes 100 mm-high plinth consisting of four angle pieces.
- Designed to be completed with suitable plinth flanges, cable-entry flanges and side panels.
- Suitable for industrial automation, control and power-distribution assemblies.
Integrated Cable Management for Industrial Automation Cabinets
An internal cable container provides dedicated space for routing, organising and terminating conductors while keeping cabling separated from the principal equipment area. This arrangement is particularly useful in complex industrial panels where substantial power, control and communication wiring must be accommodated without unnecessarily reducing the space available for installed electrical equipment.
The ABB ES1806VC2K combines a 200 mm-wide internal cable section with a large main equipment area inside its 1000 mm-wide, 600 mm-deep structure. Together with its removable roof, dedicated cable-container door and modular IS2 construction, the cabinet provides a practical platform for industrial control, power distribution, motor-control and factory automation applications.
Typical Applications
- Industrial automation and process-control panels.
- PLC and control-system cabinets.
- Motor-control and drive-system assemblies.
- Electrical power-distribution panels.
- Machine-control cabinets requiring segregated cable-management space.
- Factory automation and multi-section industrial switchboards.
