Why Choose the ABB ES1824VK IS2 Cabinet?

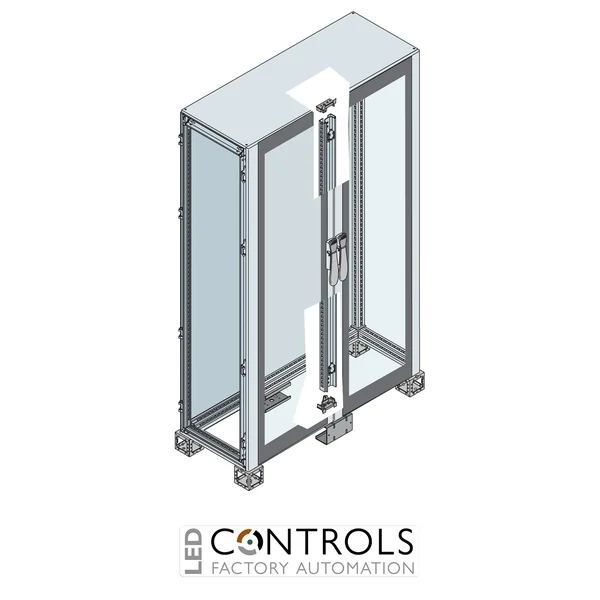

The ABB ES1824VK is a robust pre-assembled IS2 floor-standing electrical cabinet with double glazed doors designed for industrial automation, control and electrical distribution applications. As part of the modular ABB IS2 enclosure range, it provides a spacious housing for switchgear, control equipment and automation components while allowing convenient visual inspection of installed equipment.
The ES1824VK features double glazed doors with overlapping closure on a removable intermediate upright. Its pre-assembled structure includes a removable roof, glazed doors, rear panel and a 100 mm plinth made up of six angle pieces. The double-door arrangement also incorporates a pair of crosspieces mounted in depth to support the enclosure structure.
With nominal dimensions of 1800 mm high × 1200 mm wide × 400 mm deep, the ES1824VK provides a broad installation area while maintaining a relatively shallow cabinet depth. It can be completed with compatible ABB IS2 plinth flanges, cable-entry flanges and side panels to create a finished industrial enclosure tailored to the application.
Key Advantages
- Pre-assembled floor-standing industrial cabinet with double glazed doors.
- Generous 1800 × 1200 × 400 mm nominal dimensions for automation and electrical equipment.
- Glazed doors provide convenient visibility of installed indicators, displays and controls.
- Removable intermediate upright improves access during equipment installation and maintenance.
- Integrated 100 mm plinth provides a stable base for floor-standing installation.
- Modular ABB IS2 construction supports compatible side panels, cable-entry components and internal accessories.
Key Features
- ABB IS2 enclosure series.
- Pre-assembled cabinet with double glazed doors.
- 1800 mm nominal height.
- 1200 mm nominal width.
- 400 mm nominal depth.
- Double glazed doors with overlapping closure.
- Removable intermediate upright between the doors.
- Pair of structural crosspieces mounted in depth.
- Supplied with removable roof and rear panel.
- 100 mm plinth formed from six angle pieces.
- Designed for completion with compatible plinth flanges, cable-entry flanges and side panels.
Accessible Protection for Industrial Control Equipment
Glazed-door electrical cabinets provide protected installation space while allowing operators and maintenance personnel to inspect indicators, displays and other visible equipment without opening the enclosure. The ES1824VK's 1200 mm width and double-door arrangement also provide convenient access to a broad internal equipment area during panel assembly and servicing.
The ABB IS2 platform is designed around a modular enclosure architecture for industrial panel building. The ES1824VK can be completed with compatible IS2 side panels, plinth components, cable-entry accessories and internal mounting equipment, making it suitable for PLC systems, control devices, switchgear and other industrial automation assemblies.
Typical Applications
- Industrial automation control panels.
- PLC and machine-control systems.
- Electrical distribution and switchgear assemblies.
- Motor control and drive installations.
- Process-control and monitoring equipment.
- OEM machinery and production-line systems.
