Why Choose the ABB ES1825FV4K IS2 Cabinet?

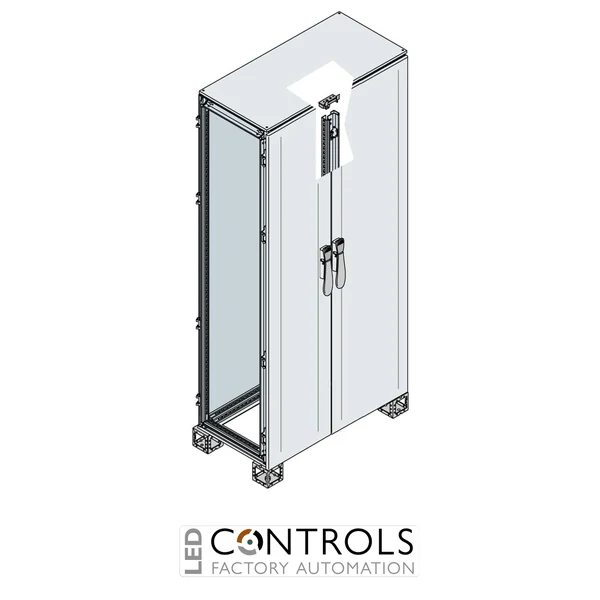

The ABB ES1825FV4K is a pre-assembled IS2 industrial automation cabinet with a blind door and 400 mm-wide internal cable compartment. Designed as part of the ABB IS2 Enclosures for Automation system, it provides a spacious equipment area together with dedicated internal space for organised cable routing and termination.
The ES1825FV4K has nominal dimensions of 1800 mm high × 1200 mm wide × 500 mm deep. Its integrated 400 mm-wide internal cable compartment leaves an 800 mm-wide main equipment section within the overall cabinet width, providing a practical arrangement for installations containing substantial control, power and communication cabling.
Designed for professional industrial panel building, the ES1825FV4K combines a blind-door enclosure with the modular flexibility of the ABB IS2 system. The pre-assembled configuration simplifies cabinet construction while compatible IS2 accessories allow the enclosure to be completed and adapted for industrial automation, machine control, motor-control and electrical distribution applications.
Key Advantages
- Pre-assembled ABB IS2 cabinet with internal cable compartment.
- Nominal 1800 × 1200 × 500 mm dimensions provide substantial equipment capacity.
- Dedicated 400 mm-wide internal cable compartment supports organised conductor routing and termination.
- Provides an 800 mm-wide main equipment section alongside the cable compartment.
- Blind-door configuration provides protected housing for industrial electrical equipment.
- Modular IS2 construction supports flexible completion with compatible ABB enclosure accessories.
Key Features
- ABB IS2 Enclosures for Automation cabinet.
- Blind-door cabinet with internal cable compartment.
- 1800 mm nominal height.
- 1200 mm nominal width.
- 500 mm nominal depth.
- 400 mm-wide internal cable compartment.
- 800 mm-wide main equipment section.
- Pre-assembled floor-standing enclosure configuration.
- Dedicated internal space for cable routing and termination.
- Designed for electrical control, automation and distribution equipment.
- Compatible with appropriate ABB IS2 enclosure-completion and mounting accessories.
- Suitable for stand-alone installations and coordinated industrial switchboard systems.
- NEMA 1 and NEMA 12 classifications.
- Supplied as one cabinet per package.
Integrated Cable Management for Complex Industrial Panels
An internal cable compartment provides a dedicated area for routing and organising conductors separately from the main equipment-mounting space. This arrangement is particularly valuable in industrial control panels containing significant quantities of power, control and communication wiring, helping panel builders create cleaner layouts and maintain convenient access to cable runs.
The ABB ES1825FV4K combines a 400 mm-wide cable compartment with an 800 mm-wide main equipment section inside its 1200 mm-wide enclosure. Together with a substantial 500 mm cabinet depth and modular IS2 construction, this configuration provides a versatile platform for demanding automation, control and electrical distribution installations.
Typical Applications
- Industrial automation and process-control panels.
- PLC and control-system cabinets.
- Motor-control and variable-speed drive assemblies.
- Electrical power-distribution panels.
- Machine-control cabinets requiring dedicated cable-management space.
- Factory automation and multi-section industrial switchboards.
