Why Choose the ABB ES2004VC2K IS2 Cabinet?

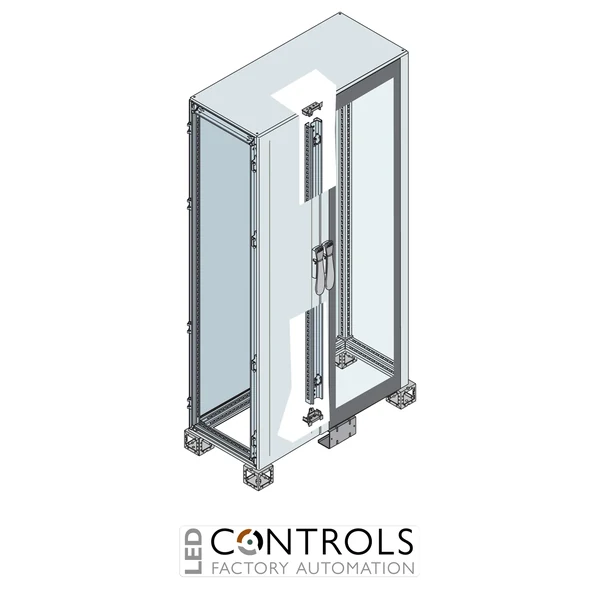

The ABB ES2004VC2K is a pre-assembled IS2 floor-standing electrical cabinet with a glazed door and dedicated internal cable compartment, designed for industrial automation, control and electrical distribution applications. With nominal dimensions of 2000 mm high × 1000 mm wide × 400 mm deep, it provides substantial vertical installation space while maintaining a comparatively shallow enclosure depth.
The ES2004VC2K incorporates a dedicated 200 mm-wide internal cable compartment, allowing cabling to be separated from the main equipment area. Its pre-assembled structure includes a removable roof, glazed main door, separate cable-compartment door, upright, intermediate crosspiece and rear panel, providing a practical foundation for organised industrial panel construction.
A 100 mm plinth consisting of four angle pieces is included with the structure. The cabinet can be completed with suitable ABB IS2 plinth flanges, cable-entry flanges and side panels, while the cable compartment can be positioned on the right or left side to suit the required panel layout.
Key Advantages
- Pre-assembled IS2 floor-standing cabinet with glazed main door.
- Generous 2000 × 1000 × 400 mm nominal dimensions for industrial control assemblies.
- Dedicated 200 mm internal cable compartment supports organised cable routing.
- Glazed main door enables convenient visual inspection of installed equipment.
- Cable compartment can be arranged on the right or left side to suit the installation.
- Modular ABB IS2 construction supports compatible side panels, cable-entry components and internal accessories.
Key Features
- ABB IS2 Enclosures for Automation series.
- Pre-assembled glazed-door cabinet with internal cable compartment.
- 2000 mm nominal height.
- 1000 mm nominal width.
- 400 mm nominal depth.
- 200 mm internal cable compartment width.
- Glazed main door with separate cable-compartment door.
- Cable compartment configurable on the right or left side.
- Removable roof and included rear panel.
- Upright and intermediate crosspiece included in the pre-assembled structure.
- 100 mm plinth consisting of four angle pieces.
- Designed for completion with compatible plinth flanges, cable-entry flanges and side panels.
Equipment Visibility and Structured Cable Management
The ABB ES2004VC2K combines a glazed main door with a dedicated 200 mm cable compartment, allowing panel builders to separate cable routing from the primary equipment area while retaining visual access to installed automation and control components. This arrangement is particularly useful where indicators, displays or equipment status need to remain visible without opening the main cabinet door.
The internal cable compartment can be configured on either side of the cabinet, supporting different cable-entry and equipment-layout requirements. Combined with the modular ABB IS2 architecture, the ES2004VC2K provides a flexible enclosure platform for PLC systems, industrial controls, switchgear and other automation assemblies requiring organised equipment installation and cable management.
Typical Applications
- Industrial automation control panels.
- PLC and process-control systems.
- Electrical distribution and switchgear assemblies.
- Motor-control and variable speed drive installations.
- Manufacturing and production-line control systems.
- OEM machinery and factory-automation equipment.
