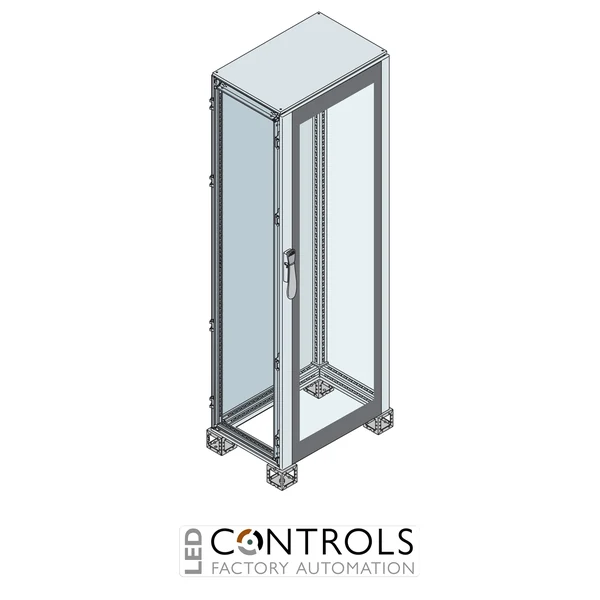

Why Choose the ABB ES2008VK IS2 Glazed Door Cabinet?
The ABB ES2008VK is a pre-assembled IS2 floor-standing industrial cabinet with a glazed door, designed for electrical automation, control and distribution applications. Its transparent front provides convenient visual access to installed indicators, displays and control equipment while maintaining the protection of a closed industrial enclosure.
With external dimensions of 2000 mm high × 1000 mm wide × 800 mm deep, the ES2008VK provides substantial internal capacity for switchgear, PLC hardware, variable speed drives, instrumentation and associated wiring. The generous 800 mm depth makes it particularly suitable for complex control assemblies requiring significant equipment and cable-management space.
The cabinet is constructed from sheet steel, finished in RAL 7035 light grey and provides IP65 protection when correctly completed. Its modular ABB IS2 construction includes a removable roof, glazed door, rear panel and 100 mm-high plinth, providing a versatile platform for demanding industrial panel-building applications.
Key Advantages
- Robust ABB IS2 floor-standing cabinet with glazed door.
- Large 2000 × 1000 × 800 mm external dimensions provide substantial equipment capacity.
- Glazed front door enables visual monitoring of indicators, displays and instrumentation without opening the enclosure.
- Generous 800 mm depth accommodates large components and extensive internal cable routing.
- IP65 protection when correctly completed for demanding industrial environments.
- Modular IS2 construction supports compatible ABB side panels, cable-entry flanges, plinth components and internal accessories.
Key Features
- ABB IS2 Enclosures for Automation range.
- 2000 mm height, 1000 mm width and 800 mm depth.
- Single glazed / transparent front door.
- Pre-assembled floor-standing construction.
- Sheet-steel enclosure structure.
- Removable roof for installation access.
- Rear panel included.
- 100 mm-high plinth consisting of four angle pieces.
- RAL 7035 light grey finish.
- IP65 degree of protection when correctly completed.
- NEMA 1, 3R and 12 enclosure ratings.
- Designed for completion with suitable plinth flanges, cable-entry flanges and side panels.
Visible Equipment Protection for Large Industrial Control Systems
The ABB ES2008VK combines substantial enclosure capacity with the operational benefits of a glazed front door. Indicators, meters, HMIs and other visual equipment can be inspected while the cabinet remains closed, helping operators monitor system status without unnecessary access to live or sensitive internal components.
Its 1000 mm width and 800 mm depth provide generous space for complex automation hardware, switchgear, drives and internal wiring. As part of the modular ABB IS2 system, the ES2008VK can be completed with appropriate side panels, cable-entry flanges, plinth flanges and internal mounting accessories to create an enclosure configuration tailored to the installation.
Typical Applications
- Industrial automation and machine control panels.
- PLC and process-control systems.
- Electrical distribution and switchgear assemblies.
- Control panels with visible instrumentation, displays or status indicators.
- Motor-control and variable speed drive installations.
- Manufacturing and production-line automation systems.
