Why Choose the ABB ES2015BK IS2 Cabinet?

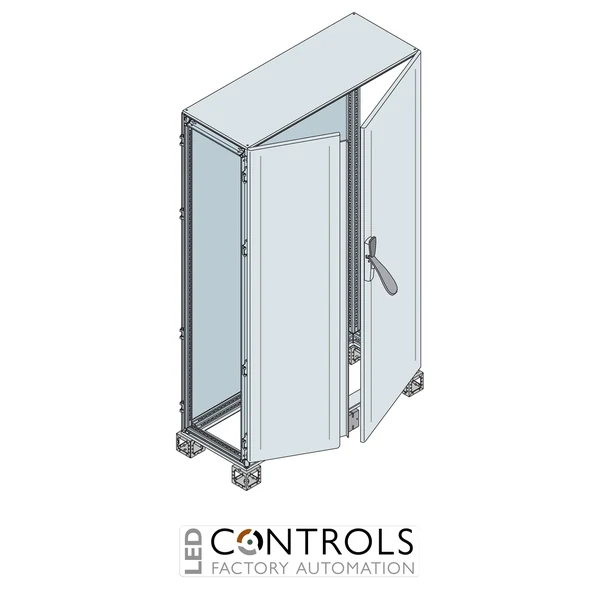

The ABB ES2015BK is a large floor-standing industrial cabinet with double blind doors and overlapping closure, designed for electrical automation, control and distribution applications. Part of the ABB System pro E control IS2 enclosure series, it provides a robust modular platform for building substantial industrial electrical panels.
The ES2015BK is supplied as a pre-assembled structure with a removable roof, double blind doors, rear panel and 100 mm-high plinth formed from four corner pieces. The double-door configuration also incorporates a pair of crosspieces mounted in depth and a removable intermediate upright for door closure, providing a practical structure for panel assembly and equipment access.
With external dimensions of 2000 × 1000 × 500 mm and a useful enclosure height of approximately 1900 mm, the ES2015BK provides generous installation capacity while retaining a relatively compact depth. It is designed to be completed with the appropriate plinth flanges, cable-entry flanges and side panels for the finished installation.
Key Advantages
- Large floor-standing industrial cabinet for automation and electrical distribution systems.
- Double blind doors with overlapping closure provide convenient access across the 1000 mm cabinet width.
- Generous 2000 × 1000 × 500 mm external dimensions.
- Pre-assembled structure helps reduce enclosure preparation and assembly work.
- Removable intermediate upright improves access during equipment installation and maintenance.
- Supplied with a 100 mm plinth for floor-standing installation.
- Modular ABB IS2 architecture supports flexible panel construction and integration into larger cabinet systems.
Key Features
- ABB System pro E control IS2 series.
- Pre-assembled floor-standing cabinet.
- External dimensions of 2000 × 1000 × 500 mm.
- Useful enclosure height of approximately 1900 mm.
- Double blind doors with overlapping closure.
- Removable roof for convenient installation access.
- Supplied with rear panel.
- Pair of structural crosspieces mounted in depth.
- Removable intermediate upright for double-door closure.
- 100 mm-high plinth comprising four corner pieces.
- Designed for completion with compatible ABB IS2 plinth, cable-entry and side-panel components.
- Suitable for industrial automation, control and electrical distribution assemblies.
Flexible Double-Door Enclosure for Industrial Automation
Industrial control cabinets such as the ABB IS2 provide an organised enclosure platform for switchgear, PLCs, variable frequency drives, power supplies, terminals and associated control equipment. The ES2015BK's double-door configuration provides broad access to the cabinet interior, helping panel builders during equipment mounting, wiring, commissioning and maintenance.
The combination of a 2000 mm overall height, 1000 mm width and comparatively compact 500 mm depth makes the ES2015BK suitable for substantial control and distribution systems where floor space and equipment accessibility are important. Its modular IS2 construction also allows the enclosure to be completed with compatible ABB accessories to suit the requirements of the finished electrical assembly.
Typical Applications
- Industrial automation and machine-control panels.
- PLC and process-control systems.
- Motor-control and variable-frequency-drive panels.
- Electrical distribution and switchgear assemblies.
- Manufacturing and production-line control systems.
- Industrial machinery and OEM electrical panels.
- Plant automation and process installations.
- Large standalone or multi-cabinet control systems.
