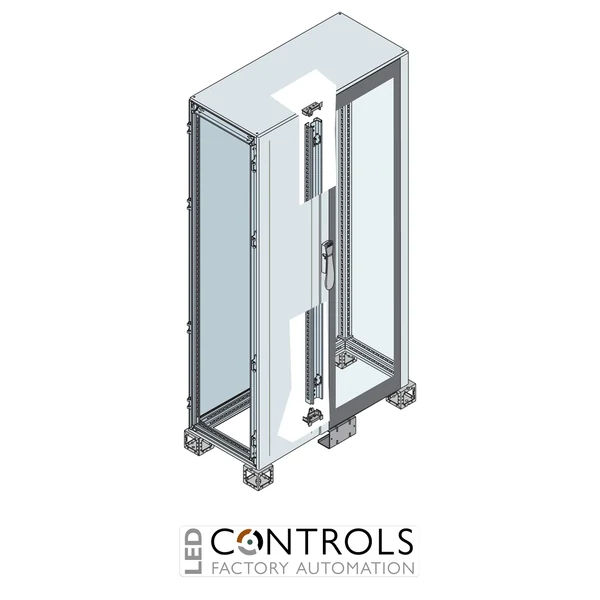

Why Choose the ABB ES2024VC4K IS2 Glazed Door Cabinet with 400 mm Cable Container?
The ABB ES2024VC4K is a pre-assembled IS2 floor-standing industrial cabinet with a glazed door and integrated 400 mm cable container, designed for automation, electrical control and distribution applications. Its wide-format configuration combines a large equipment section with a dedicated vertical cable-management area for organised industrial panel construction.
With external dimensions of 2000 mm high × 1200 mm wide × 400 mm deep, the ES2024VC4K provides an 800 mm-wide main equipment area alongside a 400 mm-wide internal cable container. The glazed equipment door allows visual inspection of indicators, displays and instrumentation, while the separate cable-container section keeps wiring accessible and organised.
The cabinet is supplied as a pre-assembled IS2 structure with a removable roof, glazed equipment door, cable-container door, upright, intermediate crosspiece, rear panel and 100 mm-high plinth. The cable container can be positioned on the right or left side when specified, providing additional flexibility when designing the panel layout and cable-entry arrangement.
Key Advantages
- Purpose-designed ABB IS2 cabinet with glazed equipment door and 400 mm cable container.
- Large 2000 × 1200 × 400 mm external dimensions.
- 800 mm-wide main equipment area provides substantial space for automation and control components.
- 400 mm-wide internal cable container provides dedicated space for cable routing and termination.
- Glazed equipment door enables visual monitoring without opening the main equipment section.
- Cable container can be configured on the right or left side to suit the panel layout.
Key Features
- ABB IS2 Enclosures for Automation range.
- 2000 mm height, 1200 mm width and 400 mm depth.
- Integrated 400 mm-wide internal cable container.
- 800 mm-wide main equipment section.
- Glazed main equipment door.
- Separate cable-container door.
- Removable roof and rear panel.
- Upright and intermediate crosspiece included.
- 100 mm-high plinth with intermediate plinth support for the 1200 mm-wide cabinet.
- Pre-assembled floor-standing construction.
- Useful cabinet height of 1900 mm.
- Designed for completion with compatible plinth flanges, cable-entry flanges and side panels.
Visible Equipment Protection with Dedicated Cable Management
The ABB ES2024VC4K combines a wide 800 mm equipment section with a dedicated 400 mm cable container. This configuration enables control equipment, instrumentation and status indicators to remain visible through the glazed door while power, control and communication conductors can be routed separately through the cable-management section.
The 1200 mm overall width provides substantial horizontal capacity without requiring a deep enclosure, while the 400 mm depth helps limit the cabinet footprint. The ability to specify the cable container on either the right or left side also helps panel builders adapt the enclosure to site-specific cable-entry and equipment-layout requirements.
Typical Applications
- Industrial automation and machine control panels.
- PLC and process-control systems.
- Electrical distribution and control assemblies.
- Panels with visible instrumentation, HMIs or status indicators.
- Industrial installations requiring dedicated vertical cable-management space.
- Manufacturing and production-line automation systems.
