Why Choose the ABB ES2025VK IS2 Cabinet?

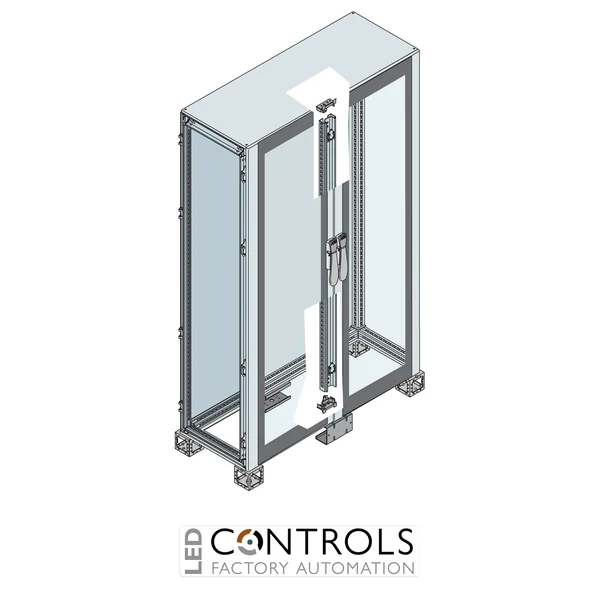

The ABB ES2025VK is a pre-assembled IS2 floor-standing industrial cabinet with double glazed doors, designed for housing electrical, control and automation equipment while allowing convenient visual inspection of installed components. As part of the ABB IS2 Enclosures for Automation range, it provides a robust and modular enclosure platform for industrial control panels, switchgear and machine automation assemblies.
The ES2025VK features double glazed doors with overlapping closure on a removable intermediate upright. Its pre-assembled structure includes a removable roof, rear panel and a 100 mm plinth, while the double-door arrangement incorporates crosspieces mounted in depth and the removable intermediate upright used for door closure.
With dimensions of 2000 × 1200 × 500 mm (H × W × D), the ES2025VK provides substantial installation capacity for industrial electrical and automation equipment. Its sheet-steel construction, transparent glazed doors, RAL 7035 light-grey finish and IP65 protection rating make it suitable for demanding industrial enclosure applications.
Key Advantages
- Pre-assembled ABB IS2 floor-standing industrial cabinet.
- Large 2000 × 1200 × 500 mm enclosure format for control and automation equipment.
- Double glazed doors allow visual inspection of installed components.
- Overlapping door closure uses a removable intermediate upright.
- IP65 protection rating for demanding industrial enclosure applications.
- Robust sheet-steel construction with RAL 7035 light-grey finish.
- Modular IS2 architecture supports completion with compatible enclosure components and accessories.
Key Features
- ABB IS2 Enclosures for Automation series.
- Pre-assembled floor-standing cabinet.
- Double transparent glazed doors.
- Overlapping closure on an intermediate upright.
- 2000 mm height.
- 1200 mm width.
- 500 mm depth.
- 100 mm plinth.
- Removable intermediate upright for door closure.
- Crosspieces mounted in depth for the double-door arrangement.
- Removable roof and rear panel included in the structure.
- IP65 degree of protection.
Visible and Protected Industrial Control Equipment
Floor-standing cabinets such as the ABB ES2025VK provide a protected mechanical enclosure for industrial electrical, control and automation equipment. The double glazed doors allow indicators, displays and other installed components to remain visible while enclosed, helping simplify routine inspection and monitoring without unnecessarily opening the cabinet.
The ABB IS2 system uses a modular enclosure architecture that enables panel builders and system integrators to configure cabinets around individual project requirements. The ES2025VK provides the principal pre-assembled structure and can be completed with compatible plinth flanges, cable-entry flanges and side panels to create a finished industrial enclosure assembly.
Typical Applications
- Industrial automation and control panels.
- PLC and process-control installations.
- Electrical switchgear and distribution assemblies.
- Machine and production-line control systems.
- Instrumentation and monitoring panels.
- Motor control and industrial power equipment.
- Factory automation and manufacturing installations.
