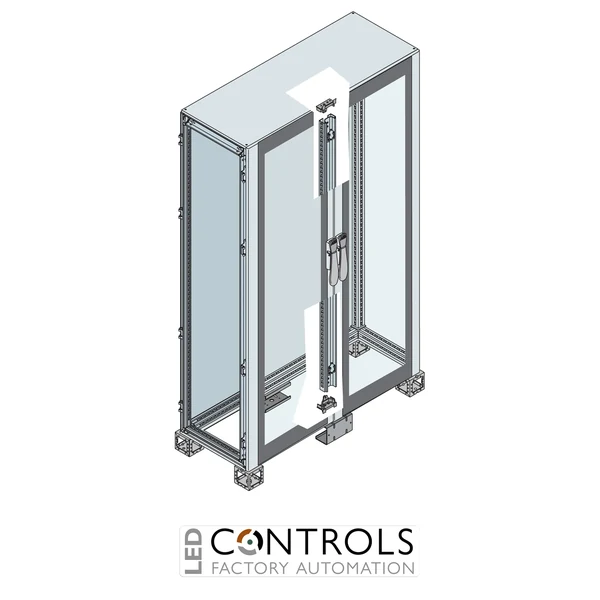

Why Choose the ABB ES2028VK IS2 Cabinet?
The ABB ES2028VK is a large floor-standing industrial cabinet with double glazed doors, designed for electrical automation, control and distribution applications. Part of the ABB System pro E control IS2 enclosure series, it provides a robust modular platform for professional panel builders, machine manufacturers and system integrators requiring substantial equipment capacity with clear visibility of installed components.
The ES2028VK is supplied as a pre-assembled structure with a removable roof, double glazed doors, rear panel and 100 mm-high plinth. The two doors use an overlapping closure on a removable intermediate upright, while a pair of depth-mounted crosspieces supports the double-door arrangement and helps provide convenient access during equipment installation and maintenance.
With external dimensions of 2000 × 1200 × 800 mm and a useful enclosure height of 1900 mm, the ES2028VK provides substantial internal capacity for complex industrial electrical systems. Its wide and deep cabinet format makes it particularly suitable for automation, drive-control and distribution installations where equipment visibility, accessibility and generous mounting space are important.
Key Advantages
- Large floor-standing industrial cabinet for automation and electrical distribution systems.
- Generous 2000 × 1200 × 800 mm external dimensions.
- Double glazed doors allow visual inspection of installed equipment while the enclosure remains closed.
- Overlapping door closure on a removable intermediate upright.
- Wide 1200 mm cabinet format provides excellent access to installed equipment.
- Pre-assembled construction helps reduce enclosure preparation and assembly work.
- Modular ABB IS2 architecture supports flexible panel layouts and larger multi-cabinet installations.
Key Features
- ABB System pro E control IS2 series.
- Pre-assembled floor-standing cabinet.
- External dimensions of 2000 × 1200 × 800 mm.
- Useful enclosure height of 1900 mm.
- Double glazed door configuration.
- Overlapping closure on an intermediate upright.
- Removable intermediate upright improves access during installation and maintenance.
- Pair of structural crosspieces mounted in depth for the double-door configuration.
- Removable roof for convenient equipment installation.
- Rear panel included.
- 100 mm-high plinth comprising six angle pieces.
- Designed for completion with compatible ABB IS2 plinth flanges, cable-entry flanges and side panels.
Visible and Accessible Protection for Industrial Automation
The ABB ES2028VK provides a spacious enclosure platform for PLCs, variable frequency drives, switchgear, power supplies, terminals, instrumentation and associated industrial control equipment. Its double glazed doors allow operators and maintenance personnel to visually inspect displays, indicators and installed components without opening the cabinet.
The combination of a 2000 mm height, 1200 mm width and substantial 800 mm depth makes the ES2028VK particularly suitable for complex control systems requiring significant mounting and wiring space. The removable intermediate upright and wide double-door opening also improve access during assembly, commissioning and maintenance.
Typical Applications
- Large industrial automation and machine-control panels.
- PLC and process-control systems.
- Motor-control and variable-frequency-drive panels.
- Electrical distribution and switchgear assemblies.
- Control systems requiring visible displays and status indicators.
- Manufacturing and production-line control systems.
- Industrial machinery and OEM electrical panels.
- Large standalone and multi-cabinet automation installations.
