Why Choose the ABB ES2076BK IS2 Cabinet?

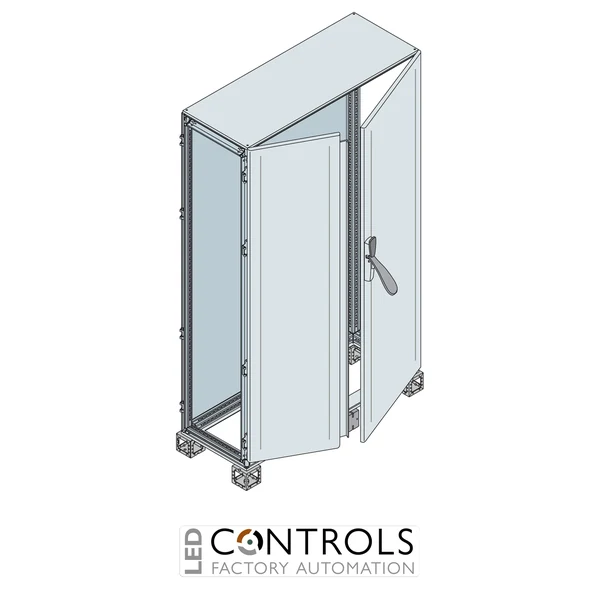

The ABB ES2076BK is a robust floor-standing industrial automation cabinet with double blind doors from the ABB System pro E control IS2 enclosure range. Designed for electrical automation, control and industrial panel-building applications, this large-format enclosure provides a secure and adaptable housing for switchgear, control equipment and automation components.
As part of the ABB IS2 modular enclosure system, the ES2076BK features a pre-assembled structure with a removable roof, rear panel and double blind doors with overlapping closure. The double-door arrangement incorporates an intermediate removable upright for door closure, while the modular IS2 construction enables the enclosure to be completed with appropriate side panels, cable-entry flanges and plinth flanges for the required installation.
With nominal dimensions of 2000 × 1600 × 600 mm (H × W × D), the ES2076BK provides substantial internal space for large industrial control and automation assemblies. A 100 mm plinth supports floor-standing installation, with an intermediate plinth included for the wide 1600 mm cabinet configuration.
Key Advantages
- Large-format floor-standing industrial automation cabinet for demanding control-panel applications.
- 2000 × 1600 × 600 mm nominal dimensions provide substantial space for electrical and automation equipment.
- Double blind doors with overlapping closure provide convenient access across the wide enclosure.
- Pre-assembled IS2 structure helps reduce enclosure assembly requirements.
- Removable roof and intermediate door upright support efficient installation and maintenance access.
- Modular ABB IS2 construction allows the cabinet to be configured with compatible enclosure accessories.
Key Features
- ABB System pro E control IS2 enclosure series.
- 2000 mm height, 1600 mm width and 600 mm depth.
- Double blind doors with overlapping closure.
- Removable roof for improved installation and servicing access.
- Rear panel included with the pre-assembled structure.
- 100 mm plinth formed from angle pieces.
- Intermediate plinth included for the 1600 mm wide cabinet.
- Intermediate removable upright supports the double-door closure arrangement.
- Pair of depth-mounted crosspieces incorporated with the double-door configuration.
- Sheet-steel construction for industrial electrical installations.
- Designed for floor-standing automation and control-panel applications.
Robust Enclosure Platform for Industrial Control Systems
ABB IS2 cabinets provide a modular enclosure platform for electrical distribution, machine control and industrial automation systems. The large internal capacity of the ES2076BK makes it particularly suitable for complex assemblies containing switchgear, motor-control equipment, PLC hardware, drives, terminals and other electrical components.
The ES2076BK combines a wide double-door format with removable structural elements to improve accessibility during panel construction, wiring and servicing. The cabinet can be completed with compatible IS2 side panels, plinth flanges and cable-entry flanges, allowing panel builders to configure the enclosure around the requirements of the electrical installation.
Typical Applications
- Industrial automation and machinery control panels.
- Electrical distribution and switchgear assemblies.
- PLC and process-control systems.
- Motor-control and variable-speed drive panels.
- Manufacturing and production-line automation.
- OEM machine-building projects.
- Large industrial electrical control systems.
