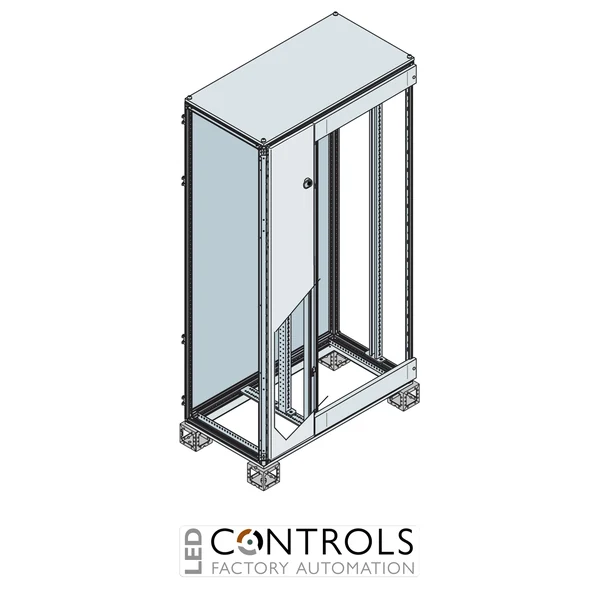

Why Choose the ABB ES2086MF2K IS2 Cabinet for Compartment Configuration?
The ABB ES2086MF2K is a pre-assembled System pro E control IS2 industrial cabinet for compartment configuration, designed for electrical distribution, automation and control-panel applications. Its compartment-ready construction makes it particularly suitable for installations where functional separation of electrical equipment and organised cable routing are required.
The ES2086MF2K has nominal cabinet dimensions of 2000 × 800 × 600 mm (H × W × D) and incorporates a dedicated 200 mm wide cable container. This leaves a 600 mm wide equipment compartment, providing a practical arrangement for separating cabling from switchgear, control devices and other electrical equipment within the enclosure.
Designed as part of ABB's modular IS2 enclosure platform, the ES2086MF2K features a single opaque door, sheet-steel construction and a RAL 7035 textured finish. The enclosure is designed for indoor floor-standing installations and provides IP65 protection when appropriately configured, making it suitable for demanding industrial control and automation environments.
Key Advantages
- Pre-assembled IS2 cabinet designed for compartment configuration.
- 2000 × 800 × 600 mm nominal dimensions provide substantial capacity for industrial electrical equipment.
- Integrated 200 mm wide cable container supports organised cable routing and segregation.
- 600 mm wide equipment compartment provides dedicated installation space for electrical components.
- IP65 protection supports use in demanding indoor industrial environments when correctly configured.
- Modular ABB IS2 construction supports flexible electrical distribution and automation panel designs.
Key Features
- ABB System pro E control IS2 enclosure series.
- 2000 mm height, 800 mm width and 600 mm depth.
- Designed specifically for configuration with compartments.
- 200 mm wide dedicated cable container.
- 600 mm wide equipment compartment.
- Single opaque door configuration.
- IP65 degree of protection when appropriately configured.
- NEMA 1, 3R and 12 enclosure ratings.
- Sheet-steel construction for industrial electrical applications.
- Textured RAL 7035 finish.
- Pre-assembled floor-standing enclosure format.
Compartmentalised Protection for Industrial Control Systems
Compartmentalised electrical cabinets help separate functional areas within a control or distribution assembly, improving equipment organisation and supporting safer, more manageable wiring layouts. The ABB ES2086MF2K combines a 600 mm equipment compartment with a dedicated 200 mm cable container, allowing power and control cabling to be routed separately from the main equipment installation area.
The ABB IS2 modular enclosure platform is designed for industrial switchgear, automation and control-panel construction. Its flexible architecture allows panel builders to develop compartmentalised assemblies for machinery, production systems and electrical distribution installations while maintaining convenient access for installation, wiring and maintenance.
Typical Applications
- Industrial automation and machinery control panels.
- Compartmentalised electrical distribution assemblies.
- PLC and process-control systems.
- Motor-control centres and drive panels.
- Industrial switchgear installations.
- Manufacturing and production-line automation.
- OEM machinery and machine-building projects.
