Why Choose the ABB ES2205FV2K IS2 Cabinet?

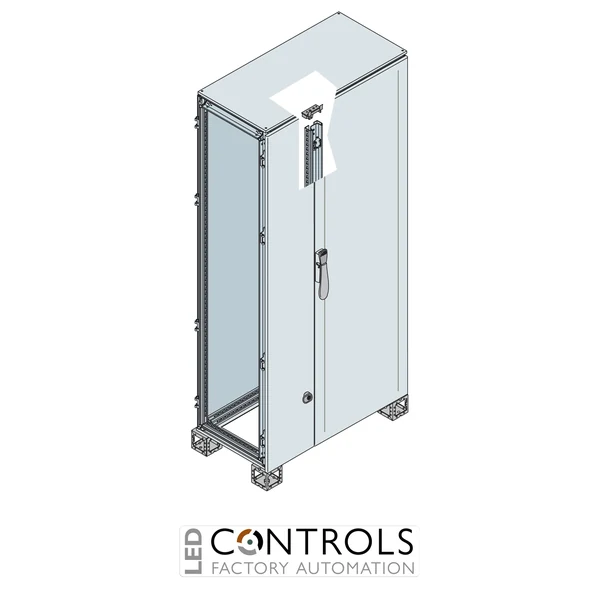

The ABB ES2205FV2K is a pre-assembled System pro E control IS2 floor-standing cabinet with a blind door and dedicated internal cable compartment, designed for industrial automation, control and electrical distribution applications. Its compartmented layout provides a practical way to separate cable routing from the main equipment installation area within a single robust enclosure.
The ES2205FV2K has external dimensions of 2200 mm high × 1000 mm wide × 500 mm deep and incorporates a 200 mm-wide internal cable compartment. The cable compartment can be positioned on the right or left side of the structure, providing flexibility when designing cable entry, termination and equipment layouts.
With IP65 protection, sheet-steel construction and a RAL 7035 light grey finish, the ES2205FV2K provides a durable enclosure solution for demanding industrial installations. Its blind-door configuration, dedicated cable area and modular ABB IS2 architecture make it particularly suitable for professional control panels, machinery systems and automation assemblies.
Key Advantages
- Pre-assembled ABB System pro E control IS2 floor-standing cabinet.
- 2200 × 1000 × 500 mm external dimensions provide substantial installation capacity.
- Dedicated 200 mm-wide internal cable compartment improves cable routing and separation.
- Cable compartment can be arranged on the right or left side of the cabinet structure.
- IP65 protection helps protect installed equipment against dust and water ingress.
- Modular IS2 architecture supports professional industrial automation and electrical panel construction.
Key Features
- ABB System pro E control IS2 series.
- Pre-assembled floor-standing cabinet.
- 2200 mm external height.
- 1000 mm external width.
- 500 mm external depth.
- 200 mm-wide internal cable compartment.
- Blind / opaque door configuration.
- IP65 degree of protection.
- Sheet-steel enclosure construction.
- RAL 7035 light grey finish.
- Internal cable compartment configurable on the right or left side.
- Designed for completion with compatible plinth flanges, cable-entry flanges and side panels.
- Suitable for industrial automation, control and electrical distribution applications.
Organised Cable Management for Industrial Control Panels
Separating cable routing from the main equipment area can simplify the construction and maintenance of complex industrial control panels. The ABB ES2205FV2K incorporates a dedicated 200 mm-wide internal cable compartment, providing a defined area for routing and organising power, control and communication cabling alongside the main electrical equipment space.
The internal cable compartment can be positioned on either side of the structure to suit the panel design. Combined with the cabinet's 2200 mm height, 1000 mm width and 500 mm depth, this arrangement provides a versatile enclosure platform for automation, machinery control and electrical distribution assemblies where structured cable management is important.
Typical Applications
- Industrial automation and control panels.
- PLC and instrumentation cabinets.
- Electrical distribution and control assemblies.
- Motor control and machinery panels.
- Panels requiring a dedicated internal cable compartment.
- Manufacturing and process automation systems.
- OEM electrical panel and machine-building applications.
