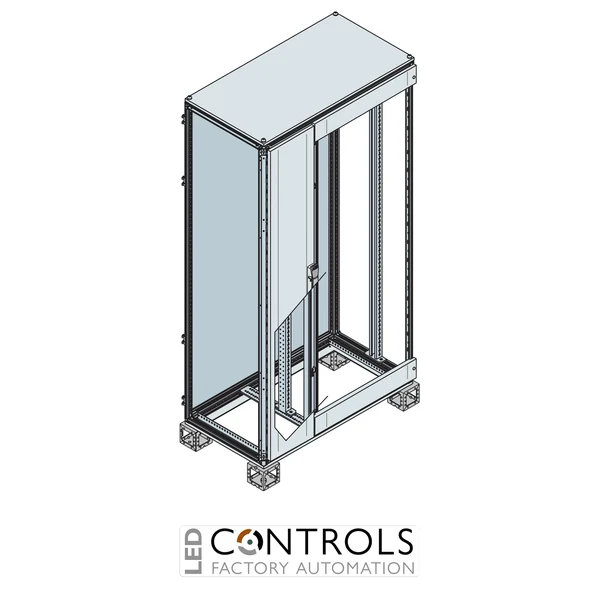

Why Choose the ABB ES2206MF4K IS2 Compartment Cabinet?
The ABB ES2206MF4K is a pre-assembled System pro E control IS2 floor-standing cabinet for compartmentalised electrical assemblies, designed for industrial automation, control and electrical distribution applications. Its internal arrangement combines a dedicated equipment compartment with a separate cable compartment, providing a structured enclosure platform for complex industrial panel installations.
The ES2206MF4K has nominal cabinet dimensions of 2200 mm high × 1000 mm wide × 600 mm deep. Within its overall width, the enclosure provides a 600 mm-wide equipment compartment alongside a dedicated 400 mm-wide cable compartment, helping separate electrical components from cable routing and termination areas.
Designed for compartmentalised configurations with segregation up to Form 3a, the ES2206MF4K is particularly suitable for industrial assemblies where functional separation, organised wiring and convenient equipment access are important. Its sheet-steel construction and IP65 degree of protection provide a robust enclosure solution for demanding automation and electrical control environments.
Key Advantages
- Pre-assembled ABB IS2 cabinet for compartmentalised electrical assemblies.
- 2200 × 1000 × 600 mm nominal dimensions provide substantial industrial panel capacity.
- Dedicated 400 mm-wide cable compartment provides generous cable-routing and termination space.
- 600 mm-wide equipment compartment separates electrical components from the cable-management area.
- Designed for compartmentalised configurations with segregation up to Form 3a.
- IP65 protection and modular IS2 construction support demanding industrial installations.
Key Features
- ABB System pro E control IS2 series.
- Pre-assembled floor-standing compartment cabinet.
- 2200 mm nominal height.
- 1000 mm nominal width.
- 600 mm nominal depth.
- 600 mm-wide equipment compartment.
- 400 mm-wide cable compartment.
- Designed for segregation up to Form 3a.
- Single opaque / blind-door configuration.
- IP65 degree of protection.
- Sheet-steel enclosure construction.
- RAL 7035 light grey finish.
- NEMA 1, 3R and 12 enclosure ratings.
- Designed for industrial automation, control and electrical distribution assemblies.
- Compatible with the modular ABB IS2 panel-building system.
Compartmentalised Design for Industrial Electrical Panels
Compartmentalised electrical cabinets allow equipment and cabling to be arranged in defined functional areas, helping create organised industrial control and distribution assemblies. The ABB ES2206MF4K combines a 600 mm-wide equipment compartment with a substantial 400 mm-wide cable compartment, providing dedicated space for power, control and communication cable routing alongside the main electrical equipment.
The enclosure is designed for configurations with segregation up to Form 3a, making it suitable for panel designs where separation of functional areas is required. Its 2200 mm height and 600 mm depth provide useful equipment capacity while maintaining a practical footprint for industrial automation, machinery and electrical distribution installations.
Typical Applications
- Compartmentalised industrial electrical panels.
- Industrial automation and process-control systems.
- Electrical distribution and switchgear assemblies.
- Motor control and variable-speed drive panels.
- PLC and instrumentation installations.
- Panels requiring a large dedicated cable compartment.
- OEM machinery and industrial panel-building applications.
