Why Choose the ABB ES2206VC2K IS2 Cabinet?

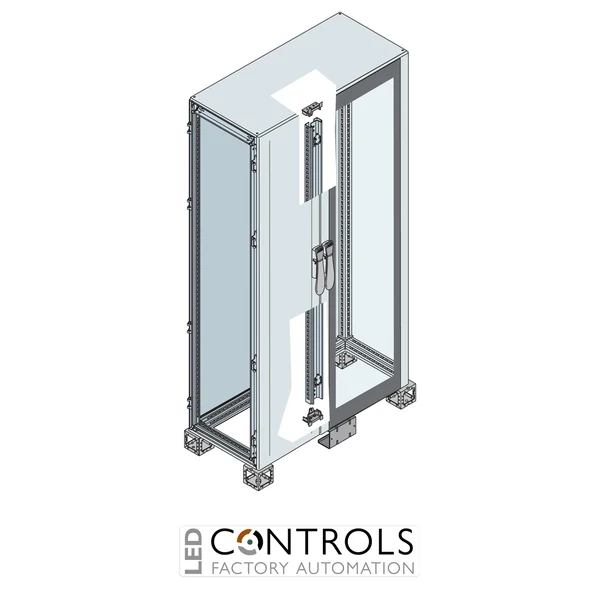

The ABB ES2206VC2K is a pre-assembled System pro E control IS2 floor-standing cabinet with a glazed door and dedicated internal cable compartment, designed for industrial automation, control and instrumentation applications. Its glazed front provides convenient visibility of installed indicators and displays, while the separate cable area helps keep wiring organised away from the main equipment section.
The ES2206VC2K has nominal structure dimensions of 2200 mm high × 1000 mm wide × 600 mm deep and incorporates a 200 mm-wide internal cable compartment. The cable compartment can be positioned on either the right or left side of the structure, allowing the enclosure arrangement to suit the cable-entry and equipment-layout requirements of the completed panel.
The cabinet combines a glazed front door, robust sheet-steel construction and IP65 protection with the modular flexibility of ABB's IS2 enclosure platform. This makes the ES2206VC2K particularly suitable for industrial installations where operators need to view control or instrumentation equipment while retaining a dedicated area for cable routing and termination.
Key Advantages
- Pre-assembled ABB System pro E control IS2 floor-standing cabinet.
- 2200 × 1000 × 600 mm nominal structure dimensions provide substantial equipment capacity.
- Glazed front door allows visual inspection of indicators, displays and instrumentation.
- Dedicated 200 mm-wide internal cable compartment supports organised cable routing and termination.
- Cable compartment can be positioned on the right or left side to suit the panel design.
- IP65 protection provides robust environmental protection for industrial installations.
Key Features
- ABB System pro E control IS2 series.
- Pre-assembled floor-standing electrical cabinet.
- 2200 mm nominal height.
- 1000 mm nominal width.
- 600 mm nominal depth.
- 200 mm-wide internal cable compartment.
- Glazed / transparent front-door configuration.
- IP65 degree of protection.
- Sheet-steel enclosure construction.
- RAL 7035 light grey finish.
- Cable compartment configurable on the right or left side.
- Designed for completion with compatible plinth flanges, cable-entry flanges and side panels.
- NEMA 1, 3R and 12 enclosure ratings.
- Suitable for industrial automation, control and instrumentation applications.
Equipment Visibility with Dedicated Cable Management
Industrial automation panels frequently contain displays, meters, indicators and instrumentation that benefit from being visible during normal operation. The glazed door of the ABB ES2206VC2K enables operators and maintenance personnel to inspect this equipment without routinely opening the enclosure, while the dedicated 200 mm-wide cable compartment provides a separate area for wiring and cable termination.
The cable compartment can be arranged on either side of the cabinet structure, giving panel builders additional flexibility when planning cable entry and equipment placement. Combined with the enclosure's 2200 mm height, 1000 mm width and 600 mm depth, this configuration provides a versatile platform for substantial industrial automation, instrumentation and electrical control assemblies.
Typical Applications
- Industrial automation and control panels.
- PLC and instrumentation cabinets.
- Panels containing visible meters, displays and status indicators.
- Process monitoring and control systems.
- Industrial machinery and production-line controls.
- Panels requiring a dedicated internal cable-management area.
- OEM electrical panel and machine-building applications.
