Why Choose the ABB ES2214BK IS2 Double Blind Door Cabinet?

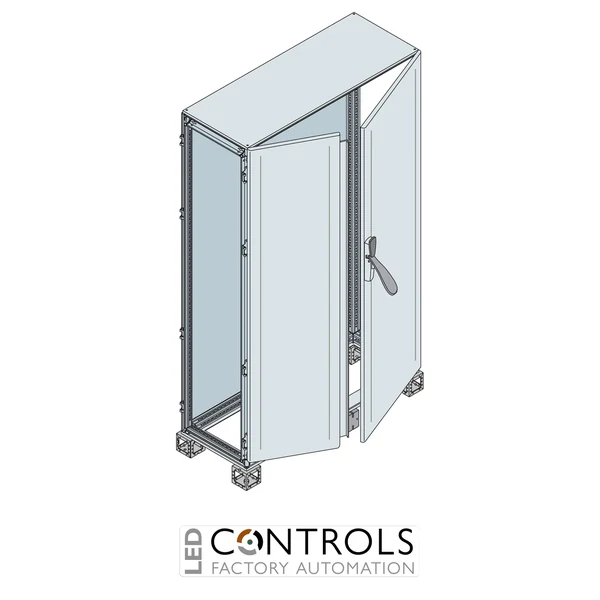

The ABB ES2214BK is a pre-assembled System pro E control IS2 floor-standing industrial cabinet with double blind doors, designed for automation, control and electrical distribution applications. Its enclosed double-door format provides a practical solution for housing electrical equipment where a large, secure installation area is required.
With dimensions of 2200 × 1000 × 400 mm (H × W × D), the ES2214BK provides a wide equipment area while maintaining a relatively shallow 400 mm depth. ABB's overlapping double-door arrangement uses an intermediate upright for door closure, helping create a robust and accessible cabinet configuration for industrial panel building.
The pre-assembled structure includes a removable roof, double blind door assembly, rear panel and 100 mm plinth. The cabinet is designed to be completed with the appropriate plinth flanges, cable-entry flanges and side panels, allowing panel builders to configure the finished enclosure around the requirements of the electrical installation.
Key Advantages
- Pre-assembled ABB IS2 industrial cabinet with double blind doors.
- 2200 × 1000 × 400 mm dimensions provide a large equipment area in a relatively shallow enclosure.
- Overlapping double-door closure provides convenient access to installed equipment.
- Removable intermediate upright assists access during installation and maintenance.
- Supplied with a 100 mm high plinth formed from four corner pieces.
- Modular System pro E control IS2 construction supports flexible industrial panel configurations.
Key Features
- ABB System pro E control IS2 enclosure series.
- 2200 mm height, 1000 mm width and 400 mm depth.
- Double blind doors with overlapping closure.
- Intermediate upright for door closure.
- Intermediate upright can be removed to improve access.
- Pair of crosspieces mounted in depth for the double-door configuration.
- Removable roof for convenient panel assembly and servicing.
- Rear panel included with the pre-assembled structure.
- 100 mm high plinth.
- Designed for completion with compatible plinth flanges, cable-entry flanges and side panels.
Wide Access for Industrial Panel Building
Double-door industrial cabinets provide convenient access across a broad equipment installation area while avoiding the need for one exceptionally wide door leaf. The ABB ES2214BK uses overlapping blind doors together with an intermediate closing upright, providing a practical enclosure arrangement for automation, control and electrical distribution assemblies.
The removable roof and intermediate upright further support installation and maintenance access, while the rear panel and 100 mm plinth provide the foundation of the pre-assembled enclosure. Compatible IS2 side panels, cable-entry components and plinth accessories can then be selected to complete the cabinet for the intended installation.
Typical Applications
- Industrial automation and machinery control panels.
- Electrical distribution and switchgear assemblies.
- PLC and process-control systems.
- Motor-control and drive panels.
- Manufacturing and production-line automation.
- OEM machinery and machine-building projects.
- Industrial electrical installations requiring broad front access.
