Why Choose the ABB ES2218BK IS2 Cabinet?
The ABB ES2218BK is a robust IS2 floor-standing industrial cabinet with double blind doors and overlapping closure, designed for electrical distribution, industrial automation and control-panel applications. Part of the modular ABB IS2 Enclosures for Automation range, it provides a spacious and mechanically strong enclosure platform for switchgear, control equipment and associated electrical components.

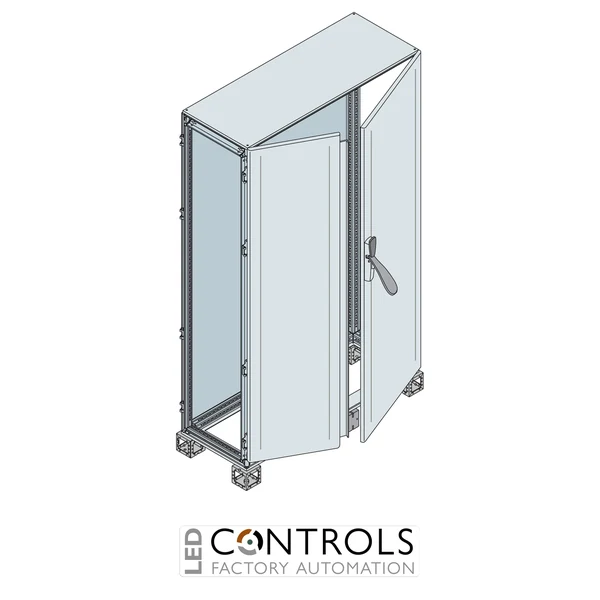

The ES2218BK has external dimensions of 2200 × 1000 × 800 mm. Its pre-assembled structure incorporates a removable roof, double blind front doors, rear panel and a 100 mm high plinth. The double-door arrangement uses overlapping closure on a removable intermediate upright supported by crosspieces mounted in depth, providing secure enclosure closure while retaining practical access to the installed equipment.
Manufactured from sheet steel and finished in RAL 7035 light grey, the ES2218BK provides IP65 protection when correctly completed and installed. The cabinet can be completed with compatible ABB IS2 plinth flanges, cable-entry flanges, side panels and internal mounting accessories to create a tailored industrial enclosure system.
Key Advantages
- Pre-assembled ABB IS2 industrial floor-standing cabinet.
- 2200 × 1000 × 800 mm external dimensions provide generous equipment installation capacity.
- Double blind doors with overlapping closure provide wide access to installed equipment.
- IP65 degree of protection when correctly configured and installed.
- Removable intermediate upright facilitates equipment installation and maintenance access.
- Integrated 100 mm plinth provides a practical floor-standing base.
Key Features
- ABB IS2 Enclosures for Automation series.
- Pre-assembled floor-standing enclosure.
- 2200 mm height, 1000 mm width and 800 mm depth.
- Double blind steel doors with overlapping closure.
- Removable intermediate upright for double-door closure.
- Pair of structural crosspieces mounted in depth.
- Removable roof and rear panel included.
- 100 mm high plinth formed from four corner pieces.
- Sheet-steel enclosure construction.
- RAL 7035 light-grey finish.
- Compatible with ABB IS2 plinth, cable-entry, side-panel and internal mounting accessories.
Reliable Protection for Industrial Electrical Equipment
Floor-standing industrial cabinets such as the ABB ES2218BK provide a secure enclosure platform for electrical and automation assemblies while allowing equipment to be organised for installation, operation and maintenance. The large double-door opening provides convenient access to the internal equipment area, while the removable intermediate upright further assists during assembly and servicing.
The ES2218BK combines its 2200 × 1000 × 800 mm enclosure format with ABB's modular IS2 accessory system, allowing panel builders to configure internal mounting systems, cable entry, side closures and other enclosure components according to the application. Its IP65-rated construction makes it suitable for demanding industrial environments where effective protection against dust and water ingress is required.
Typical Applications
- Industrial automation and process-control panels.
- Electrical distribution and switchgear assemblies.
- Motor-control centres and variable-speed drive systems.
- PLC and machine-control installations.
- Manufacturing and production-line electrical systems.
- Large industrial panels requiring wide double-door equipment access.
