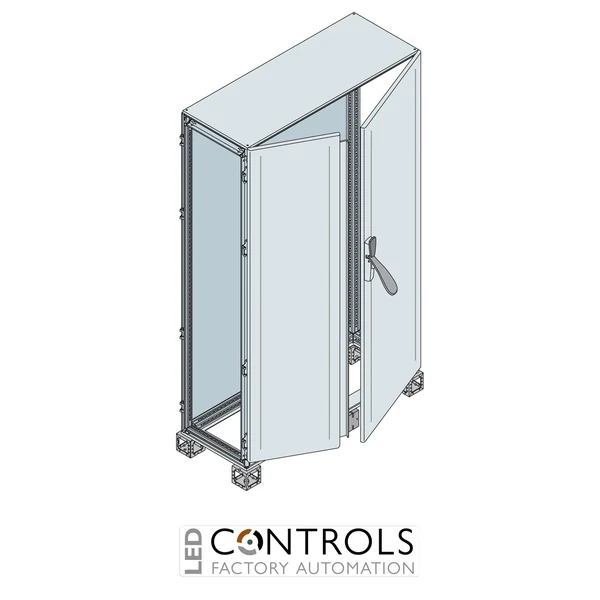

Why Choose the ABB ES2224BK IS2 Cabinet?
The ABB ES2224BK is a large IS2 floor-standing industrial cabinet with double blind doors and overlapping closure designed for electrical control, automation and distribution applications. Part of the modular ABB IS2 enclosure system, it provides a robust and adaptable housing solution for industrial electrical equipment, control components and automation systems.
The ES2224BK is supplied as a pre-assembled structure with a removable roof, double blind doors, rear panel and 100 mm plinth formed from four angle pieces. The double-door configuration incorporates depth-mounted crosspieces and a removable intermediate upright for door closure, while the 1200 mm-wide cabinet also includes an intermediate plinth.
With external dimensions of 2200 × 1200 × 400 mm (H × W × D), the ES2224BK provides extensive mounting width and vertical capacity while maintaining a relatively shallow 400 mm depth. Its sheet-steel construction, IP65 protection rating and RAL 7035 light grey finish make it suitable for professional industrial control, automation and electrical distribution installations.
Key Advantages
- Large floor-standing industrial cabinet with double blind doors.
- 2200 × 1200 × 400 mm external dimensions provide extensive equipment mounting capacity.
- Overlapping double-door closure provides practical access across the wide enclosure.
- IP65 protection rating supports demanding industrial applications when the enclosure is correctly completed.
- Relatively shallow 400 mm depth helps reduce installation footprint.
- Supplied with removable roof, rear panel and 100 mm plinth.
- Modular ABB IS2 enclosure platform supports flexible professional panel construction.
Key Features
- ABB IS2 modular enclosure series.
- Double blind doors with overlapping closure.
- 2200 mm height, 1200 mm width and 400 mm depth.
- 2100 mm useful height.
- 100 mm-high plinth.
- Removable roof for improved installation access.
- Rear panel included with the pre-assembled structure.
- Depth-mounted crosspieces and removable intermediate upright for double-door closure.
- Intermediate plinth provided for the 1200 mm-wide structure.
- Sheet-steel construction with RAL 7035 light grey finish.
- Designed to be completed with suitable plinth flanges, cable-entry flanges and side panels.
- Compatible with ABB IS2 accessories and modular enclosure systems.
Wide-Access Enclosure for Industrial Control Systems
Double-door industrial cabinets provide convenient access to wide control and distribution panels while protecting installed electrical equipment. The overlapping door arrangement used by the ABB ES2224BK allows the enclosure to provide a broad 1200 mm installation width without relying on a single oversized door.
The ABB IS2 system is designed around modular industrial panel construction, allowing cabinets to be installed individually or combined with other compatible structures. The ES2224BK's 2200 mm height and 1200 mm width provide substantial mounting area, while its 400 mm depth makes it particularly useful where a wide electrical panel is required without an unnecessarily deep enclosure.
Typical Applications
- Industrial automation and machine control panels.
- Electrical distribution and switchgear assemblies.
- PLC and process control systems.
- Motor control and industrial drive panels.
- Factory automation and production machinery.
- Building and infrastructure control systems.
- Manufacturing and material handling equipment.
- OEM machinery and professional electrical panel building.
