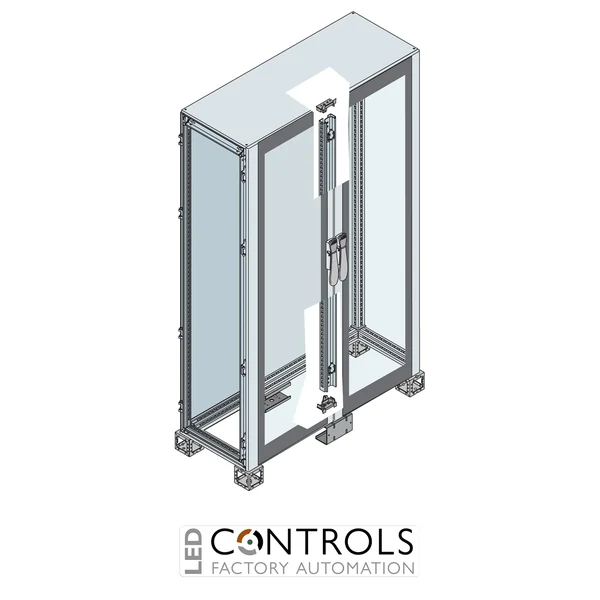

Why Choose the ABB ES2224VK IS2 Double Glazed Door Cabinet?
The ABB ES2224VK is a pre-assembled System pro E control IS2 floor-standing industrial cabinet with double glazed doors, designed for automation, control and electrical panel-building applications. Its wide transparent front provides excellent visibility of installed equipment while allowing the cabinet to remain closed during routine monitoring.
With dimensions of 2200 × 1200 × 400 mm (H × W × D), the ES2224VK provides a broad equipment installation area in a relatively shallow enclosure. The double glazed doors use an overlapping closure on an intermediate upright, making the cabinet particularly suitable for installations containing displays, indicators, instrumentation and control equipment that operators need to inspect visually.
The pre-assembled structure includes a removable roof, double glazed door assembly, rear panel and 100 mm plinth. The double-door configuration also incorporates depth-mounted crosspieces and a removable intermediate upright, while the enclosure is designed to be completed with suitable plinth flanges, cable-entry flanges and side panels.
Key Advantages
- Pre-assembled ABB IS2 industrial cabinet with double glazed doors.
- 2200 × 1200 × 400 mm dimensions provide a broad installation area with a relatively shallow depth.
- Double transparent doors enable convenient visual monitoring of installed equipment.
- Overlapping door closure uses a removable intermediate upright for improved installation and servicing access.
- Supplied with a 100 mm high plinth as part of the pre-assembled structure.
- Modular ABB IS2 construction supports flexible automation, monitoring and electrical control-panel configurations.
Key Features
- ABB System pro E control IS2 enclosure series.
- 2200 mm height, 1200 mm width and 400 mm depth.
- Double glazed / transparent door configuration.
- Overlapping door closure on an intermediate upright.
- Removable intermediate upright for improved access.
- Depth-mounted crosspieces for the double-door configuration.
- Removable roof for convenient installation and servicing.
- Rear panel included with the pre-assembled structure.
- 100 mm high plinth.
- Designed for completion with compatible plinth flanges, cable-entry flanges and side panels.
Wide Equipment Visibility for Industrial Control Systems
Double glazed industrial cabinets are particularly useful where operators need to monitor a wide array of displays, indicators, meters or control equipment without routinely opening the enclosure. The ABB ES2224VK combines a broad 1200 mm cabinet width with two transparent doors, providing convenient visibility across the installed equipment area.
The removable intermediate upright and roof help improve access during assembly and maintenance, while the rear panel and 100 mm plinth provide the foundation of the pre-assembled enclosure. Compatible ABB IS2 side panels, cable-entry components and plinth flanges can then be selected to complete the cabinet for the intended industrial installation.
Typical Applications
- Industrial automation and machinery control panels.
- PLC and process-control systems.
- Electrical control and monitoring panels.
- Industrial instrumentation and display installations.
- Manufacturing and production-line automation.
- Building and infrastructure control systems.
- OEM machinery requiring broad equipment visibility.
