Why Choose the ABB ES2228VK IS2 Cabinet?

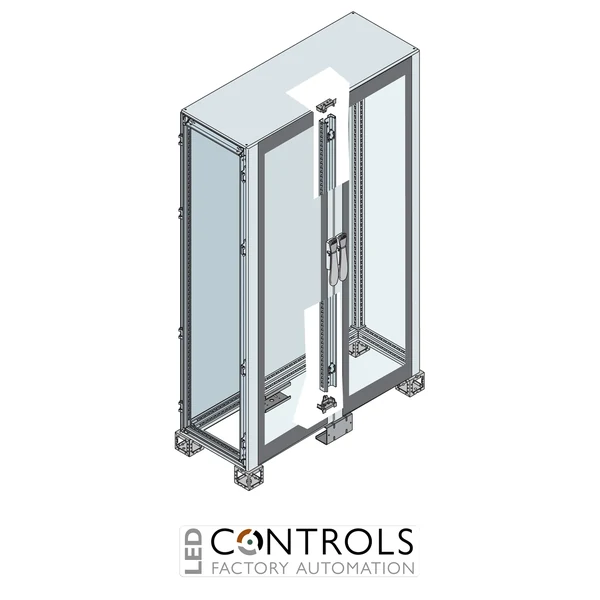

The ABB ES2228VK is a pre-assembled IS2 floor-standing cabinet with double glazed doors, designed for industrial electrical, control and automation assemblies. As part of the ABB IS2 Enclosures for Automation range, it provides a large and modular enclosure platform for panel builders, machine manufacturers and industrial automation installations.
The ES2228VK features double glazed doors with overlapping closure on an intermediate upright. Its structure includes a removable roof, glazed doors, rear panel and a 100 mm plinth formed from six angle pieces, while the double-door arrangement incorporates depth-mounted crosspieces and a removable intermediate upright for door closure.
With reference dimensions of 2200 × 1200 × 800 mm, the ES2228VK provides substantial installation capacity for electrical equipment, control components and wiring. Its transparent doors allow installed equipment to remain visible when the enclosure is closed, while the IP55 protection rating and sheet-steel construction support demanding industrial applications.
Key Advantages
- Pre-assembled ABB IS2 industrial automation cabinet.
- Large 2200 × 1200 × 800 mm reference dimensions.
- Double glazed doors provide visibility of installed equipment.
- Overlapping door closure with removable intermediate upright.
- IP55 degree of protection for industrial enclosure applications.
- Generous 800 mm depth provides substantial equipment and wiring capacity.
- Modular IS2 construction supports customised electrical and automation assemblies.
Key Features
- ABB IS2 Enclosures for Automation series.
- Pre-assembled cabinet with double glazed doors.
- 2200 mm reference height.
- 1200 mm reference width.
- 800 mm reference depth.
- IP55 degree of protection.
- Sheet-steel construction.
- RAL 7035 light-grey orange-peel surface finish.
- Removable roof and rear panel included.
- 100 mm plinth formed from six angle pieces.
- Depth-mounted crosspieces and removable intermediate upright for double-door closure.
- Designed for completion with compatible plinth flanges, cable-entry flanges and side panels.
Reliable Glazed Enclosure for Industrial Automation
Industrial automation cabinets provide the mechanical structure required to house and organise switchgear, control equipment, automation hardware and associated wiring. The ABB IS2 system uses a modular enclosure architecture that allows panel builders to configure cabinets around the electrical and mechanical requirements of industrial installations.
The ES2228VK combines a wide 1200 mm cabinet format with an 800 mm depth and double glazed doors, making it particularly suitable for substantial panels where equipment visibility and broad front access are beneficial. Its removable intermediate upright, roof and modular accessory compatibility also support efficient panel assembly, wiring and maintenance.
Typical Applications
- Industrial automation and PLC control panels.
- Low-voltage switchgear assemblies.
- Motor control and machinery control cabinets.
- Industrial power-distribution systems.
- Manufacturing and process-control installations.
- OEM machinery and factory automation systems.
