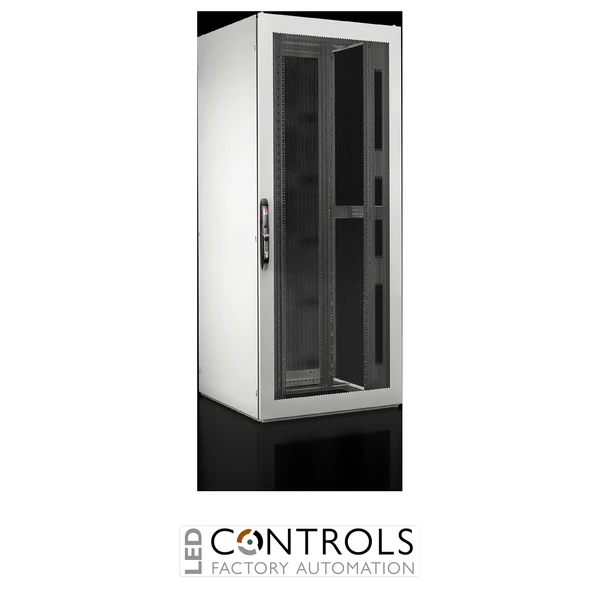

Rittal TX 5541.220 is an 800 x 2,200 x 1,200 mm 47 U colocation server rack with 78% perforated vented sheet steel doors, front and rear 19-inch mounting angles and a 15,000 N load capacity for scalable data centre infrastructure.
£1,803.81
The Rittal TX 5541.220 is a purpose-designed TX Colocation server rack for high-density IT infrastructure and professional colocation data centres. Measuring 800 mm wide × 2,200 mm high × 1,200 mm deep and providing 47 U of installation space, the rack offers a standardised, ready-to-use platform for servers, network equipment and associated data centre infrastructure.
Airflow is supported by a one-piece vented sheet steel front door and a vertically divided, two-piece vented sheet steel rear door, both with approximately 78 % perforated surface area. Front and rear doors use 130° hinges, while VX comfort handles with numerical code locks provide controlled physical access to installed equipment.
The TX 5541.220 is supplied with front and rear 482.6 mm (19") mounting angles and supports a static load capacity of 15,000 N. Integrated cable management, a divider panel, air baffle plate and roof cable entry help simplify installation and tenant separation, making the rack particularly suitable for scalable colocation and large data centre environments.
Colocation data centres require racks that combine high equipment capacity with efficient airflow, structured cabling and secure access. The Rittal TX 5541.220 addresses these requirements with 47 U of installation space, a 15,000 N load capacity and highly perforated front and rear doors that support airflow through active IT equipment.
The integrated divider panel, rear 150 mm cable tray, full-depth roof cable entry and adjustable 19-inch mounting levels help simplify rack deployment and ongoing infrastructure management. A supplied baying kit also allows multiple TX Colo racks to be combined into standardised rows for scalable data centre installations.
| Manufacturer | Rittal |
|---|---|
| Series | TX Colo |
| Model | TX 5541.220 |
| Product type | Colocation server rack |
| Width | 800 mm |
| Height | 2,200 mm |
| Depth | 1,200 mm |
| Rack units | 47 U |
| Basic material | Sheet steel |
| General colour | RAL 7035 |
| Enclosure frame and roof colour | RAL 7035 |
| Door colour | RAL 7035 |
| Handle and hinge colour | RAL 9005 |
| Front door | One-piece vented sheet steel door |
| Rear door | Two-piece, vertically divided vented sheet steel door |
| Vented surface area | Approx. 78 % perforated |
| Door hinges | 130° front and rear |
| Mounting system | 482.6 mm (19") mounting angles, front and rear |
| Distance between mounting levels as supplied | 745 mm |
| Minimum distance between mounting levels | 115 mm |
| Maximum distance between mounting levels | 341 mm |
| Load capacity | 15,000 N |
| Base design | Open |
| Rear cable tray width | 150 mm |
| Pack quantity | 1 pc |
| Net weight | 131 kg |
| Gross weight | 141 kg |
| EAN | 4028177971615 |
| Customs tariff number | 94032080 |
| ETIM 9 | EC002499 |
| ECLASS 8.0 | 27180207 |
The Rittal TX 5541.220 measures 800 mm wide × 2,200 mm high × 1,200 mm deep and provides 47 U of installation space.
The rack has a one-piece vented sheet steel front door and a vertically divided, two-piece vented sheet steel rear door. Both provide approximately 78 % perforated surface area and use 130° hinges.
The TX 5541.220 has a specified static load capacity of 15,000 N, supporting demanding server and IT equipment installations.
The rack includes a roof plate with cable entry across the full enclosure depth on both sides and a 150 mm cable tray fitted at the rear on the right-hand side. A divider panel and air baffle plate are also included.
The rack is supplied with the enclosure frame, doors, roof plate, front and rear 19-inch mounting angles, divider panel, 150 mm rear cable tray, air baffle plate, baying kit, grounding accessories and 10 captive nuts with screws.
Rittal TX Colo racks combine high load capacity, structured cable management, secure access and high-airflow vented doors in a standardised platform designed for efficient, scalable colocation and data centre infrastructure.
