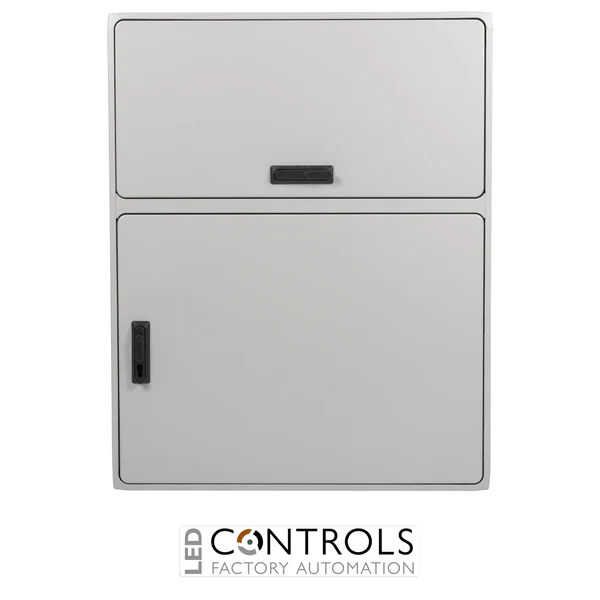

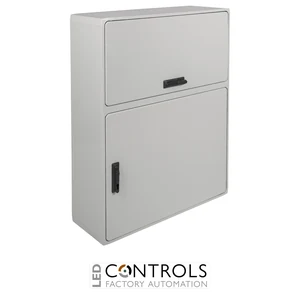

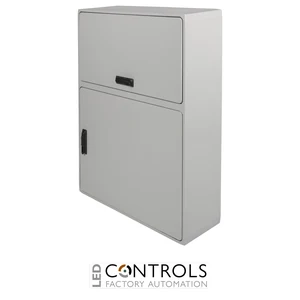

Why Choose the ABB 833056 Polysafe Electrical Enclosure 1000 × 1250 × 320mm?
The ABB 833056 Polysafe Electrical Enclosure is a large-format electrical cabinet designed for compatible electrical distribution, control and industrial equipment installations. Measuring 1000 mm wide × 1250 mm high × 320 mm deep, it provides a substantial enclosure format for applications requiring space to accommodate electrical components, associated wiring and suitable mounting accessories.
Identified by ABB order code 4TBP833056C0100, the enclosure is specified with a blind door (B/D), providing a solid door configuration without an integrated viewing window. This makes it suitable for electrical cabinet applications where a closed, opaque door is preferred over a glazed arrangement.
As part of the ABB Polysafe Enclosures product group, the 833056 is intended for professional electrical installations where cabinet dimensions, internal layout and environmental requirements must be carefully considered. Its 1000 × 1250 × 320 mm nominal dimensions make it particularly relevant to larger control and distribution assemblies, subject to the verified mounting capacity and technical characteristics of the complete enclosure.
Key Advantages
- Large-format electrical enclosure for suitable distribution and control equipment installations.
- 1000 mm nominal width provides a broad cabinet format for planning internal component layouts.
- 1250 mm nominal height accommodates vertically arranged equipment and associated wiring space.
- 320 mm nominal depth provides room for compatible equipment and mounting arrangements.
- Blind door configuration provides a solid, opaque enclosure front.
- Suitable for professional electrical panel-building projects.
- Supports organised installation of compatible electrical control and distribution components.
- Can be incorporated into new electrical infrastructure and cabinet refurbishment projects.
- Part of the ABB Polysafe Enclosures product range.
- ABB order code 4TBP833056C0100 supports accurate specification and procurement.
Key Features
- ABB Polysafe Enclosures product.
- Model 833056.
- Electrical enclosure with blind door.
- 1000 mm nominal width.
- 1250 mm nominal height.
- 320 mm nominal depth.
- Solid, non-glazed door configuration.
- Designed to house suitably selected electrical equipment.
- Supports internal equipment layout and cable-management planning.
- Suitable for compatible mounting and enclosure accessories.
- Intended for professional electrical cabinet assembly.
- Requires selection of suitable installation hardware and internal components.
- Manufacturer order code 4TBP833056C0100.
Large Electrical Cabinet Design with a Blind Door
The ABB 833056 Polysafe Enclosure provides a nominal cabinet format of 1000 × 1250 × 320 mm, offering a substantial space envelope for suitable electrical equipment. These dimensions are particularly useful when planning installations involving multiple devices, control assemblies, terminal arrangements and cable-management components.
The 1000 mm width allows designers to consider side-by-side equipment arrangements, while the 1250 mm height provides scope for vertically organised sections. The 320 mm depth must be considered alongside the installed equipment's dimensions, mounting positions, wiring bend radii and required working clearances.
The enclosure's blind door is a key distinguishing feature. Unlike a glazed door, which incorporates a viewing area, a blind door provides an opaque front surface. This can be appropriate for electrical installations where internal equipment does not need to remain visible while the door is closed.
The solid door arrangement may also provide a suitable basis for approved door-mounted accessories, where permitted by the manufacturer's instructions. Any proposed drilling, cutting or installation of operating devices must be assessed for its effect on the enclosure's structural integrity, sealing and certified protection characteristics.
Before specifying the ABB 833056, confirm the manufacturer's dimensional drawings, usable internal space, door opening arrangement, mounting provisions and permitted equipment loads. The stated external dimensions should not be treated as the available internal mounting area.
Supporting Electrical Distribution and Control Equipment Installation
The ABB 833056 electrical enclosure can be considered for installations where electrical equipment requires a dedicated cabinet with a solid door. Typical assemblies may incorporate compatible protective devices, control equipment, terminal blocks, wiring systems and other components selected by the panel designer.
Internal equipment should be arranged to maintain the clearances, ventilation and accessibility required by the relevant devices and electrical installation standards. Mounting plates, DIN rails, cable-management systems and other accessories must be selected to suit the enclosure's approved fixing arrangements.
For larger electrical cabinets, thermal management is an important design consideration. The enclosure's dimensions alone do not establish its permissible heat dissipation. Designers should assess internal heat generation, ambient conditions and the need for suitable ventilation or cooling equipment.
Environmental protection must also be verified before installation. Although the product belongs to the ABB Polysafe Enclosures range, its precise ingress protection, impact resistance, material properties and suitability for a particular environment should be confirmed from ABB's documentation for 4TBP833056C0100.
Where the enclosure is installed in an industrial or commercial setting, suitable support structures, fixing hardware, cable-entry arrangements and earthing or bonding provisions must be selected in accordance with the applicable requirements for the complete electrical assembly.
Typical Applications
- Industrial electrical control cabinets.
- Commercial electrical distribution assemblies.
- Electrical automation and monitoring systems.
- Equipment cabinets requiring a 1000 × 1250 × 320 mm enclosure format.
- Industrial process-control installations.
- Electrical infrastructure and utility equipment cabinets.
- Large electrical panel-building projects.
- Control and protection equipment installations.
- Electrical cabinet refurbishment and system upgrades.
- Installations requiring a solid blind door rather than a glazed door.
- Professional electrical distribution and control system assembly.
- Projects using compatible ABB Polysafe enclosure accessories.
