Why Choose the Fibox ARCA 505021ST Cabinet 8121112?

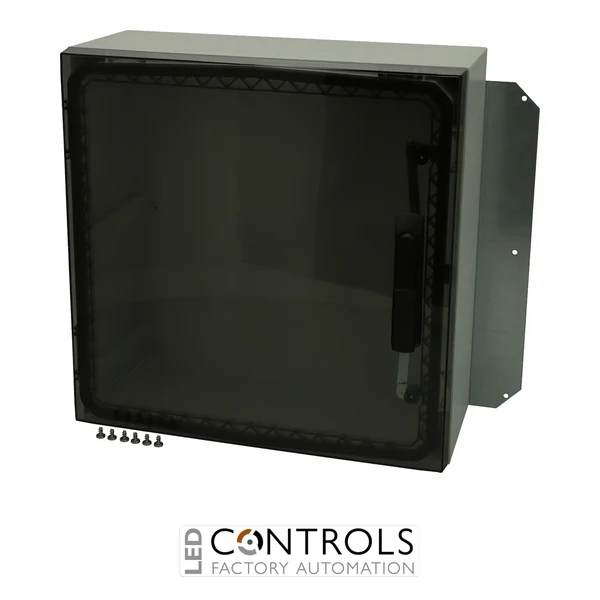

The Fibox ARCA 505021ST 8121112 is a robust polycarbonate electrical cabinet with a transparent door, designed to protect electrical, control and automation equipment in demanding industrial environments. As part of the Fibox ARCA IEC enclosure series, it combines high-grade thermoplastic construction with practical access, environmental protection and excellent resistance to corrosion.
This ARCA IEC cabinet features a smoked-grey transparent door with a swinghandle and 2-point locking system, allowing installed equipment and indicators to remain visible while the enclosure is closed. The cabinet includes a polyurethane door gasket, mounting plate with fixing screws, 3 mm double-bit lock with key and an integrated door guide for straightforward installation and dependable operation.
With external dimensions of 500 mm high × 500 mm wide × 210 mm deep, the ARCA 505021ST provides IP65 ingress protection and IK09 impact resistance. Its totally insulated, UV-resistant and halogen-free construction, combined with a continuous operating temperature range of -40 °C to +80 °C, makes it suitable for demanding electrical and automation installations.
Key Advantages
- Durable polycarbonate industrial electrical cabinet from the Fibox ARCA IEC range.
- IP65 ingress protection against dust and water.
- IK09 impact resistance for demanding industrial environments.
- Smoked-grey transparent door enables visual inspection of installed equipment.
- Swinghandle with 2-point locking system provides practical and secure cabinet access.
- Wide -40 °C to +80 °C continuous operating temperature range.
- Totally insulated, halogen-free and UV-resistant construction.
- Supplied with a mounting plate and mounting screws for equipment installation.
Key Features
- Fibox ARCA IEC enclosure series.
- 500 mm × 500 mm × 210 mm external dimensions.
- Polycarbonate cabinet construction.
- Transparent smoked-grey door.
- RAL 7035 cabinet base.
- Polyurethane door gasket.
- Swinghandle 2-point locking system.
- 3 mm double-bit lock with key.
- Integrated door guide.
- IP65 ingress protection and IK09 impact resistance.
- UL 746C UV resistance and UL 94 5VA flammability rating.
- Mounting plate and mounting screws included.
Reliable Protection for Electrical and Automation Equipment
The Fibox ARCA IEC range provides a high-grade thermoplastic alternative to traditional sheet-steel cabinets for demanding industrial environments. Polycarbonate construction offers excellent corrosion resistance while reducing cabinet weight and providing complete electrical insulation, making ARCA enclosures suitable for a wide variety of electrical and automation installations.
The ARCA 505021ST combines IP65 environmental protection, IK09 mechanical impact resistance and UV-resistant construction with a transparent door for convenient visual inspection. Its swinghandle and 2-point locking arrangement provide secure closure, while the polyurethane gasket helps maintain environmental protection around the cabinet door.
Typical Applications
- Industrial electrical control panels.
- Automation and process control systems.
- Electrical distribution and switching equipment.
- Machine control and instrumentation systems.
- Indoor and outdoor industrial installations.
- Telecommunications and monitoring equipment.
- Applications requiring visual inspection through a transparent cabinet door.
- Corrosive environments where polycarbonate construction offers advantages over sheet steel.
