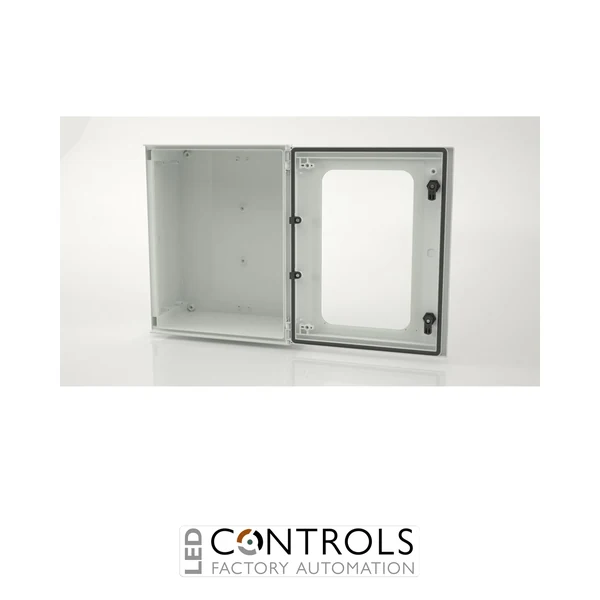

Why Choose the Safybox BRES-54P-3L-DC GRP Electrical Enclosure?
The Safybox BRES-54P-3L-DC is a robust GRP electrical enclosure with a glazed door designed for industrial power distribution, automation and outdoor electrical protection applications. Manufactured from durable glass reinforced polyester (GRP) with a transparent polycarbonate inspection window, this enclosure provides excellent resistance against harsh environmental conditions while allowing visual monitoring of installed equipment.
Part of the Safybox BRES monobloc enclosure range, the BRES-54P-3L-DC combines a compact wall-mounted design with a secure three-point locking system, IP66 protection and IK10 impact resistance. Its non-conductive GRP construction provides reliable electrical insulation and excellent resistance to corrosion, UV exposure and demanding industrial environments.
With dimensions of 500 mm height, 400 mm width and 200 mm depth, the BRES-54P-3L-DC is suitable for electrical distribution, DC power systems, renewable energy installations and industrial control applications requiring secure equipment protection and easy inspection access.
Key Advantages
- High-performance GRP electrical enclosure for industrial and outdoor applications.
- IP66 protection rating against dust and powerful water jets.
- IK10 impact resistance for improved mechanical protection.
- Transparent glazed door enables quick visual inspection of internal components.
- Three-point locking system provides secure enclosure access.
- Non-conductive GRP construction improves electrical safety.
Key Features
- Safybox BRES Series monobloc electrical enclosure.
- GRP / SMC glass reinforced polyester construction.
- 500 mm × 400 mm × 200 mm enclosure dimensions.
- Glazed polycarbonate inspection door.
- IP66 ingress protection rating.
- IK10 impact protection rating.
- Grey RAL 7035 enclosure finish with transparent window.
- Three-point locking system with padlock provision.
- Suitable for wall, pole and outdoor mounting applications.
- Double insulated, non-metallic enclosure design.
Reliable Protection for Electrical and Industrial Systems
The Safybox BRES-54P-3L-DC provides a dependable housing solution for electrical equipment installed in demanding environments. The GRP construction offers corrosion resistance, UV stability and electrical insulation properties, making it suitable for applications where traditional metal enclosures may not be ideal.
The glazed door design allows operators and maintenance engineers to inspect internal components without opening the enclosure, helping improve safety and reduce unnecessary access during operation. The secure three-point locking system provides additional protection for critical electrical installations.
Typical Applications
- DC power distribution systems.
- Renewable energy and photovoltaic installations.
- Industrial automation control panels.
- Outdoor electrical equipment protection.
- Utility and infrastructure applications.
- Telecommunications and electrical distribution systems.
