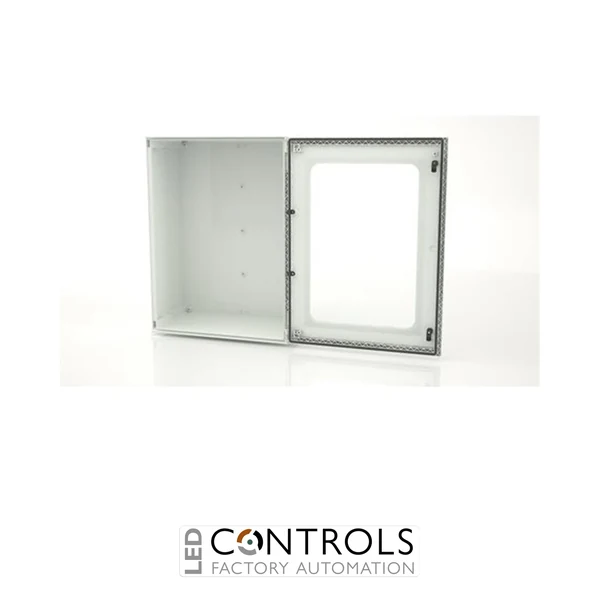

Why Choose the Safybox BRES-86P-3L-DC GRP Electrical Enclosure?
The Safybox BRES-86P-3L-DC is a robust GRP wall-mounted electrical enclosure with a glazed door, designed to protect electrical, control and distribution equipment while allowing convenient visual inspection of components without opening the cabinet. As part of the Safybox BRES monobloc enclosure series, it combines glass-reinforced polyester construction, a transparent polycarbonate window and secure three-point locking for demanding industrial and outdoor installations.
Manufactured from glass-reinforced polyester (GRP/SMC), the enclosure provides excellent resistance to corrosion and harsh environmental conditions while offering a non-conductive housing for electrical equipment. The glazed door incorporates a UV-stabilised transparent window, allowing operators to inspect meters, indicators, breakers and other equipment while maintaining the enclosure closed.
With external dimensions of 800 mm high × 600 mm wide × 300 mm deep, an IP66 ingress protection rating and IK10 impact resistance, the BRES-86P-3L-DC provides dependable equipment protection in demanding locations. Its three-point centre locking system with aluminium rods, 3 mm double-bit lock and padlock facility provides enhanced security for industrial, infrastructure, telecommunications, utility and renewable energy installations.
Key Advantages
- High-performance IP66 electrical enclosure for demanding indoor and outdoor installations.
- Durable glass-reinforced polyester (GRP/SMC) construction with excellent corrosion resistance.
- Transparent polycarbonate window enables visual inspection without opening the enclosure.
- IK10 impact resistance provides high mechanical durability.
- Secure three-point centre locking system with aluminium locking rods.
- 3 mm double-bit lock and padlock facility provide enhanced access security.
- Non-conductive enclosure construction supports electrical insulation and operator safety.
- Suitable for wall and pole mounting across industrial and infrastructure applications.
Key Features
- Safybox BRES monobloc enclosure series.
- 800 mm × 600 mm × 300 mm external dimensions.
- IP66 ingress protection.
- IK10 mechanical impact resistance.
- Glass-reinforced polyester GRP/SMC enclosure body.
- Single glazed hinged door with transparent polycarbonate window.
- Three-point centre locking with aluminium rods.
- 3 mm double-bit lock with padlock facility.
- Light grey RAL 7035 enclosure with transparent viewing area.
- 283 mm internal usable depth.
- Operating temperature range of approximately -50 °C to 80 °C.
- Suitable for indoor and outdoor installations.
- Internal mounting plate available separately.
Reliable Protection with Convenient Visual Monitoring
Industrial electrical enclosures must protect sensitive components against dust, water, corrosion and physical damage while allowing equipment to be monitored safely and efficiently. The Safybox BRES-86P-3L-DC combines IP66 ingress protection with IK10 impact resistance and a transparent viewing window, enabling operators to inspect internal devices without unnecessarily opening the enclosure.
The GRP/SMC body provides excellent resistance to aggressive environments while remaining non-conductive and corrosion resistant. Combined with its transparent door, three-point locking system and generous internal space, the BRES-86P-3L-DC provides a versatile enclosure for electrical distribution, industrial automation, telecommunications, photovoltaic systems and infrastructure projects where equipment visibility and environmental protection are both important.
Typical Applications
- Industrial electrical control panels.
- Power distribution and switching equipment.
- Metering and monitoring installations requiring visual inspection.
- Solar photovoltaic and renewable energy systems.
- Telecommunications equipment.
- Water, wastewater and gas infrastructure.
- Industrial automation and machine control systems.
- Outdoor utility and infrastructure installations.
