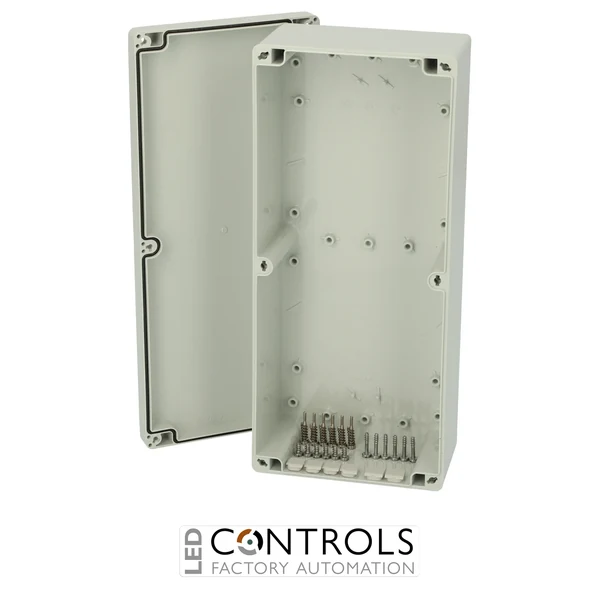

Why Choose the Fibox PCQ3 153410 7035701 Polycarbonate Enclosure?
The Fibox PCQ3 153410 7035701 is a robust polycarbonate electrical enclosure with a grey quick-locking cover designed to house and protect electrical, electronic and automation components in demanding industrial environments. Part of the established Fibox EURONORD PC enclosure range, it combines high environmental protection with quick-locking cover screws for convenient access during installation and maintenance.
Manufactured from high-quality polycarbonate, the PCQ3 153410 provides dependable mechanical protection together with complete electrical insulation. The enclosure features a RAL 7035 light grey base and cover, a polyurethane gasket and quick-locking cover screws, while the base includes fixing screws for a compatible mounting plate or DIN rail.
With external dimensions of 150 × 340 × 101 mm and IP66/IP67 ingress protection, the PCQ3 153410 provides reliable protection against dust and water. It also offers IK07/IK08 impact resistance, continuous operating temperatures from -40 to +80 °C, UV resistance to UL 746C and a UL 94 V-0 flammability rating for demanding electrical and industrial applications.
Key Advantages
- Robust polycarbonate electrical enclosure for industrial applications.
- Quick-locking cover screws provide convenient access to installed equipment.
- IP66/IP67 ingress protection against dust and water.
- IK07/IK08 impact resistance for dependable mechanical protection.
- 150 × 340 × 101 mm external dimensions provide useful installation space for electrical equipment.
- Totally insulated construction for electrical applications.
- Halogen-free, UV-resistant and UL 94 V-0 rated polycarbonate construction.
Key Features
- Fibox EURONORD PC series.
- Polycarbonate enclosure with grey quick-locking cover.
- 150 × 340 × 101 mm external dimensions.
- RAL 7035 light grey base and cover.
- Polyurethane gasket for dependable environmental sealing.
- Quick-locking cover screws for convenient opening and closing.
- IP66/IP67 protection according to EN 60529.
- IK07/IK08 impact resistance according to EN 62262.
- Totally insulated electrical construction.
- Halogen-free construction.
- UV resistance to UL 746C.
- UL 94 V-0 flammability rating.
- 960 °C glow-wire test rating.
- Base supplied with screws for mounting plate or DIN rail.
Reliable Protection with Quick-Locking Access
Electrical enclosures protect sensitive components from dust, water, accidental contact and mechanical damage. The Fibox PCQ3 153410 combines high ingress protection with impact-resistant polycarbonate construction, making it suitable for protecting terminal blocks, controls, instrumentation and other electrical or electronic equipment in industrial environments.
The quick-locking cover design simplifies access during installation, inspection and maintenance while the polyurethane gasket helps maintain effective environmental sealing when the enclosure is correctly closed. Compatible accessories include DIN-35 mounting rails, the TM 1534 mounting plate, wall fastening lugs and grey plastic hinges, providing flexibility for industrial control and automation installations.
Typical Applications
- Industrial control and automation systems.
- DIN-rail mounted terminal blocks and electrical components.
- Sensors and instrumentation equipment.
- Electrical junction and distribution applications.
- Machine control and OEM equipment.
- Installations requiring convenient quick-locking enclosure access.
- Indoor and outdoor installations requiring IP66/IP67 protection.
